Product Overview

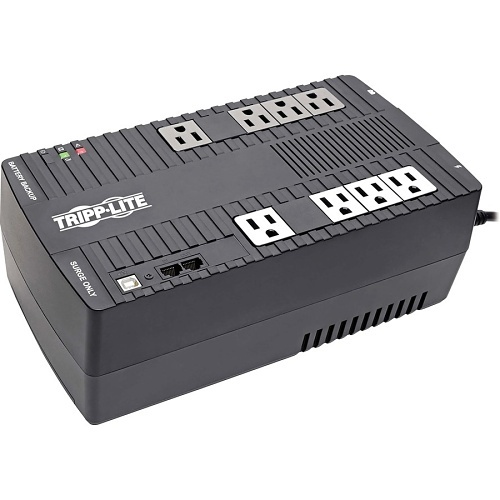

AVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.
General Information
Name : Eaton Tripp Lite AVR550U 550VA 300W Line-Interactive UPS 8 NEMA 5-15R Outlets, AVR, 120V, 50/60 Hz, USB, Desktop/Wall Mount , Eaton Tripp Lite
Category : UPS
UPC Code : 037332123442
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-AVR550U
Brand Name : Eaton Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : AVR550U
Packaged Quantity : 1
Product Model : AVR550U
Product Name : AVR 550VA Desktop UPS
Product Series : AVR
Product Type : Line-interactive UPS
Technical Information
AVR : Yes
Backup/Run Time (Full Load) : 2-Minute
Backup/Run Time (Half Load) : 9-Minute
Dataline Protection : RJ-11
EMI/RFI Noise Filter : Yes
Energy Saving : Greater than 95% efficiency - GREEN UPS
Number of Battery & Surge Outlets : 4
Number of Surge-only Outlets : 4
Output Voltage : 110V AC, 115V AC, 120V AC
Phase : Single Phase
Receptacle Detail : 8 x NEMA 5-15R
Receptacle Type : NEMA 5-15R
Transfer Time : 6 ms
Battery Information
Battery Life : 6 Year
DC System Voltage : 12 V DC
Replaceable Battery : Yes
Controls/Indicators
Status Indicators : <p>2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions</p>
Environmental Conditions
Maximum Operating Elevation : 10000 ft
Maximum Operating Temperature : 104°F (40°C)
Management
Alarm : Battery Backup, Fault, Low Battery, Overload, Replace Battery
Physical Characteristics
Application/Usage : ATM, Blu-ray Player, Computer, Digital Signage, Gaming Console, Home Theater, Home/Office, Media Center, Printer, Router, Security System, Speaker, TV
Color : Black
Depth : 12"
Form Factor : Tower, Ultra-compact Desktop, Wall Mount
Height : 4.3"
Width : 6.4"
Power Description
Input Frequency : 60 Hz
Input Voltage : 120V AC
Output Frequency : 60 Hz
Plug/Connector Type : NEMA 5-15R
Surge Energy Rating : 316 J
Waveform Type : Pulse-width Modulated Sine Wave
Software
Software Included : PowerAlert UPS monitoring software
Warranty
Limited Warranty : 2-Year
Miscellaneous
Country of Origin : CN
Environmental Certification : RoHS
Package Contents : <ul> <li>AVR 550VA Desktop UPS</li> <li>USB cable</li> <li>Owner's manual</li> </ul>
