Product Overview
AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.
General Information

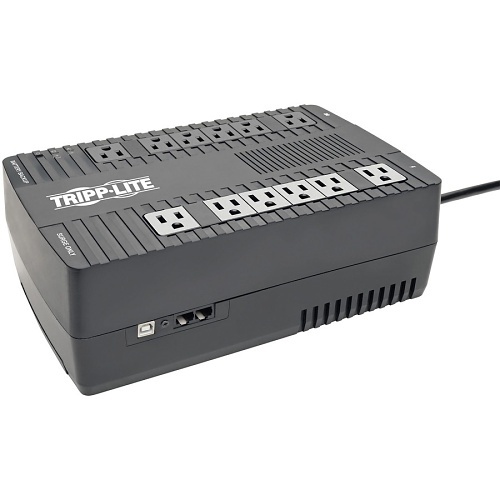

Name : Eaton Tripp Lite AVR750U 750VA 450W Line-Interactive UPS, 12 NEMA 5-15R Outlets, AVR, 120V 50/60 Hz, USB, Desktop/Wall Mount , Eaton Tripp Lite
Category : UPS
UPC Code : 037332123121
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-AVR750U
Brand Name : Eaton Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : AVR750U
Packaged Quantity : 1
Product Model : AVR750U
Product Name : AVR 750VA Desktop UPS
Product Series : AVR
Product Type : Line-interactive UPS
Technical Information
AVR : Yes
Backup/Run Time (Full Load) : 3-Minute
Backup/Run Time (Half Load) : 11-Minute
Dataline Protection : RJ-11
EMI/RFI Noise Filter : Yes
Energy Saving : Greater than 95% efficiency - GREEN UPS
Number of Battery & Surge Outlets : 6
Number of Surge-only Outlets : 6
Output Voltage : 110V AC, 115V AC, 120V AC
Phase : Single Phase
Receptacle Detail : 12 x NEMA 5-15R
Receptacle Type : NEMA 5-15R
Transfer Time : 6 ms
Battery Information
DC System Voltage : 12 V DC
Replaceable Battery : Yes
Controls/Indicators
Status Indicators : <p>2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions</p>
Environmental Conditions
Maximum Operating Elevation : 10000 ft
Maximum Operating Temperature : 104°F (40°C)
Management
Alarm : Battery Backup, Fault, Low Battery, Overload, Replace Battery
Physical Characteristics
Application/Usage : ATM, Blu-ray Player, Computer, Digital Signage, Gaming Console, Home Theater, Home/Office, Media Center, Printer, Router, Security System, TV
Color : Black
Depth : 12"
Form Factor : Tower, Ultra-compact Desktop, Wall Mount
Height : 4.1"
Width : 7.5"
Power Description
Input Frequency : 60 Hz
Input Voltage : 120V AC
Output Frequency : 60 Hz
Plug/Connector Type : NEMA 5-15R
Surge Energy Rating : 316 J
Waveform Type : Pulse-width Modulated Sine Wave
Warranty
Limited Warranty : 2-Year
Miscellaneous
Country of Origin : CN
Environmental Certification : RoHS
Package Contents : <ul> <li>AVR 750VA Desktop UPS</li> <li>USB cable</li> <li>Instruction manual</li> </ul>
