Product Overview
This NDAA/TAA-compliant MEGApix Ai CaaS all-in-one IP camera provides real-time 30 fps 5MP resolution with edge AI and DW Spectrum IPVMS server installed and licensed on the camera. No additional server hardware is required. The camera’s built-in microphone and speaker, white light and flash LEDs offer high-quality color images and deterrence.
General Information

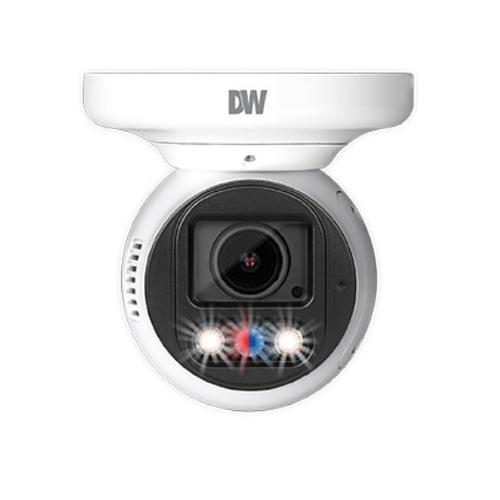

Name : Digital Watchdog DWC-XSTD05MFC1 MEGApix 5MP Ai CaaS Vandal Ball Turret IP Camera with Vari-Focal Lens and White Light LEDs , Digital Watchdog
Category : Turret Cameras
UPC Code :
Country of Origin : Korea, Republic of. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : 6K-XSTD05MF1
Manufacturer Part Number : DWC-XSTD05MFC1
Product Type : IP Camera
Supported Network Protocols : IPv4
Technical Information
American Wire Gauge : 18AWG
Built-in Microphone : Yes
Effective Camera Resolution : 5MP
Field of View : Horizontal, Vertical
Lens Type : Varifocal, Zoom
Maximum Aperture : f/1.3
Maximum Frame Rate : 30fps
Minimum Focal Length : 2.7mm
Motion Detection : Yes
Night Vision : Yes
Night Vision Type : Color
Output Voltage : 12V DC
Programmable : Yes
Protocols : DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP)
Video Formats : H.264, H.265
Camera
Image Sensor Type : CMOS
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP67
Display & Graphics
Image Sensor Size : 1/2.8"
Maximum Video Resolution : 2592 x 1944
Environmental Conditions
Maximum Operating Temperature : 122°F
Minimum Operating Temperature : -4°F
Operating Humidity : 10-90% (Non-condensing)
Operating Temperature (T-T) : -4-122°F
Exposure
Longest Shutter Speed : 1/15 Second
Minimum Illumination : 0 lux (white light)|0.07 lux (color)
Shortest Shutter Speed : Off|x10|x2|x3|x5|x6|x7.5
Lens
Focal Length : 2.7-12 mm
Focus Modes : Auto, Manual
Lens Included : Yes
License Information
License Quantity : 1
Media & Performance
Network Technology : 10 Base-T Ethernet, 100 Base-T Ethernet
Physical Characteristics
Durability : Weather Resistant
Power Description
Frequency : 50 Hz
Input Voltage : 12V DC
Warranty
Limited Warranty : 5-Year
Miscellaneous
Impact Protection Rating : IK10
