Digital Watchdog DWC-B6563WTIR650W Star-Light Plus 5MP UHDoC Bullet Camera, Varifocal Lens, 24V AC, White (Replaces DWC-B6563WTIR650)

Brand: Digital Watchdog
ADI #:6K-B6563W65W Model #: DWC-B6563WTIR650W  Name: Digital Watchdog DWC-B6563WTIR650W Star-Light Plus 5MP UHDoC Bullet Camera, Varifocal Lens, 24V AC, White (Replaces DWC-B6563WTIR650)
  • Universal HD over Coax technology with HD-Analog, HD-TVI and HD-CVI signal support
  • Star-Light Plus color in near-total darkness technology
  • 1/2.8" Image sensor

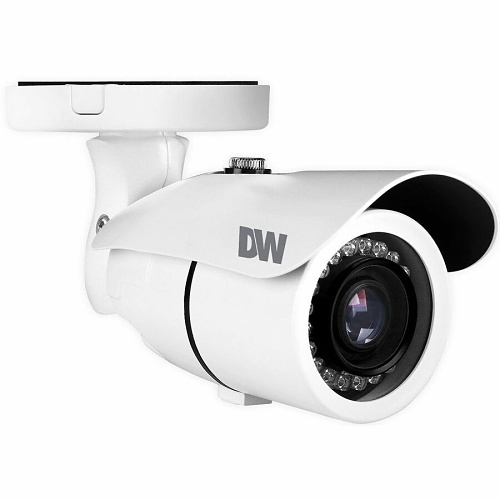

Image of 6K-B6563W65W

Product Overview

Featuring Star-Light Plus color in near-total darkness, 5MP Star-Light Plus Universal HD over Coax cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI signals. The 6-50mm long-range weather resistant bullet cameras are IP66 rated and can be controlled via the same coax cable using UTC. All DW Universal HD over Coax cameras are engineered to work with our VMAX A1 Plus DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution.

General Information

Name : Digital Watchdog DWC-B6563WTIR650W Star-Light Plus 5MP UHDoC Bullet Camera, Varifocal Lens, 24V AC, White (Replaces DWC-B6563WTIR650) , Digital Watchdog
Category : Bullet Cameras
UPC Code : 812226037032
Country of Origin : Vietnam. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : 6K-B6563W65W
Manufacturer Part Number : DWC-B6563WTIR650W
Product Type : Surveillance Camera

Technical Information

American Wire Gauge : 18AWG
Effective Camera Resolution : 5MP
Field of View : Horizontal, Vertical
Illumination Distance : 150'
Lens Type : Varifocal
Maximum Frame Rate : 30fps
Minimum Focal Length : 6mm
Motion Detection : Yes
Night Vision : Yes
Optical Zoom : 8.3x
Output Voltage : 24V AC
Programmable : Yes
Video Formats : H.264, MJPEG

Camera

Connectivity Technology : Wired
Image Sensor Type : CMOS
Night Vision Distance : 150 ft
Wide Dynamic Range : Yes

Certifications

Ingress Protection Rating : IP66

Display & Graphics

Image Sensor Size : 1/2.8"
Maximum Video Resolution : 2592 x 1944

Environmental Conditions

Maximum Operating Temperature : 122°F (50°C)
Minimum Operating Temperature : -4°F (-20°C)
Operating Humidity : 10-90% (Non-condensing)
Operating Temperature (T-T) : -4-122°F

Exposure

Minimum Illumination : 0.0 lux (B/W)|0.10 lux (color)

Lens

Focal Length : 6-50 mm
Focus Modes : Auto
Maximum Focal Length : 50 mm

Physical Characteristics

Durability : Dust Resistant, Waterproof, Weather Resistant

Power Description

Frequency : 50 Hz, 60 Hz
Input Voltage : 12V DC, 24V AC

Video

Analog Video Signal Format : CVBS, HDCVI, HD-TVI

Warranty

Limited Warranty : 5-Year

Miscellaneous

Country of Origin : VN
