Product Overview

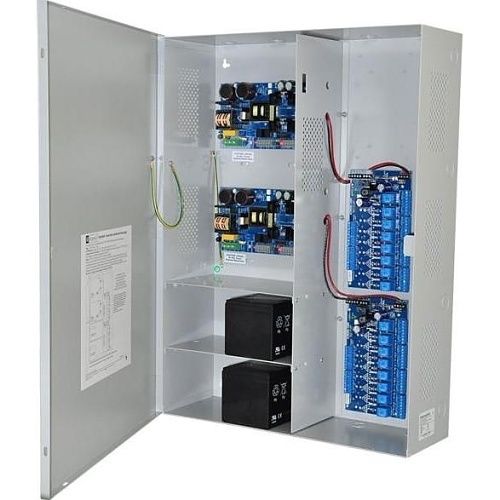

Introducing the Altronix MAXIMAL55FDV Access Power Controller, designed to efficiently manage and distribute power to your access control systems and accessories. This robust unit transforms a 220V AC input into sixteen independently controlled 12V DC outputs, each protected by PTC. It seamlessly integrates with various access control devices, including mag locks and electric strikes, and supports both fail-safe and fail-secure modes. The FACP Interface allows for emergency egress and alarm monitoring, ensuring safety and reliability. With selectable fire alarm disconnect features, this controller is a must-have for any security setup. Enhance your security system today with the Altronix MAXIMAL55FDV! Order now!
General Information
Name : Altronix MAXIMAL55FDV Access Power Controller with Power Supply / Chargers, 16 PTC Class 2 Relay Outputs, Dual 12VDC P/S at 9.5A Each, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure , Altronix
Category : Access Power Controllers
UPC Code :
Country of Origin : . Country of origin is subject to change.
Specifications
General Information
ADI Part Number : AX-MAXIM5FDV
Brand Name : Altronix
Manufacturer : Altronix Corporation
Manufacturer Part Number : MAXIMAL55FDV
Product Line : Maximal
Product Model : MAXIMAL55FDV
Product Name : Access Power Controller With Power Supply/Chargers, 16 PTC Class 2 Relay Outputs, Dual 12VDC P/S at 9.5A each, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure
Product Type : Access Power Controller
Technical Information
Output Voltage : 12V DC
Certifications
NDAA Compliant : Yes
Physical Characteristics
Depth : 6.25"
Height : 26"
Width : 19"
Power Description
Input Voltage : 220V AC
Warranty
Limited Warranty : Lifetime
Miscellaneous
Environmental Certification : RoHS
Features : AC fail supervision (form "C" contacts), Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC), Capacity 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure), Failover Upon AC loss, instantaneous, Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs, Low battery and battery presence supervision (form "C" contact), Normally open (NO) or normally closed (NC) dry contact input, Notification trigger is selectable for 30 seconds (factory set) or 2 hours, Polarity reversal input from FACP signaling circuit, Type Sealed lead acid or gel type
