Product Overview

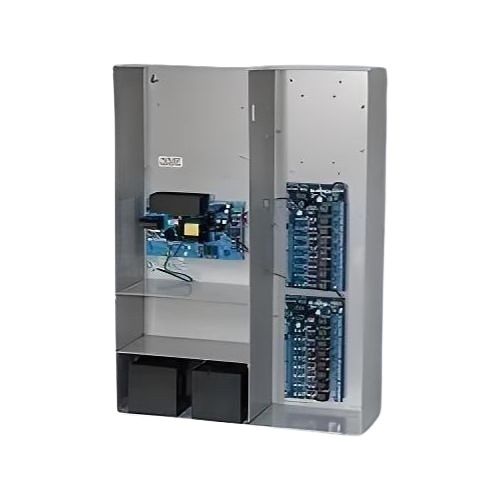

Introducing the Altronix MAXIMAL3D Access Power Controller, designed to efficiently manage power for your access control systems. This robust unit transforms a 115VAC input into sixteen independently controlled outputs, offering both 12VDC and 24VDC options with PTC protection. It seamlessly integrates with various access control devices such as mag locks and electric strikes, ensuring reliable operation in both fail-safe and fail-secure modes. The FACP interface supports emergency egress and alarm monitoring, while the customizable fire alarm disconnect feature enhances safety. Elevate your security setup with this powerful controller—order yours today!
General Information
Name : Altronix MAXIMAL3D Access Power Controller with Power Supply Charger, 16 PTC Class Relay Outputs, 12/24VDC at 6A, 115VAC, BC800 Enclosure , Altronix
Category : Access Power Controllers
UPC Code : 782239947485
Country of Origin : US. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : AX-MAX3D
Manufacturer : Altronix Corporation
Manufacturer Part Number : MAXIMAL3D
Product Line : Maximal
Product Model : MAXIMAL3D
Product Name : Access Power Controller w/ Power Supply/Charger, 16 PTC Class 2 Relay Outputs, 12/24VDC at 6A, 115VAC, BC800 Enclosure
Product Type : Power Supply
Temperature Range : 32-120°F
Technical Information
Output Voltage : 12V DC, 24V DC
Certifications
NDAA Compliant : Yes
Physical Characteristics
Depth : 6.25"
Height : 26"
Width : 19"
Power Description
Input Voltage : 120V AC
Output Current : 2.5A
Warranty
Limited Warranty : Lifetime
Miscellaneous
Country of Origin : US
