TOA PJ-304 Ceiling Mountable, Wall Mountable Speaker 30 RMS

Brand: TOA
ADI #:65-PJ304 Model #: PJ-304  Name: TOA PJ-304 Ceiling Mountable, Wall Mountable Speaker 30 RMS
  • Light Sconce Fixture Design
  • 70/100V operation
  • Repaintable Enclosure

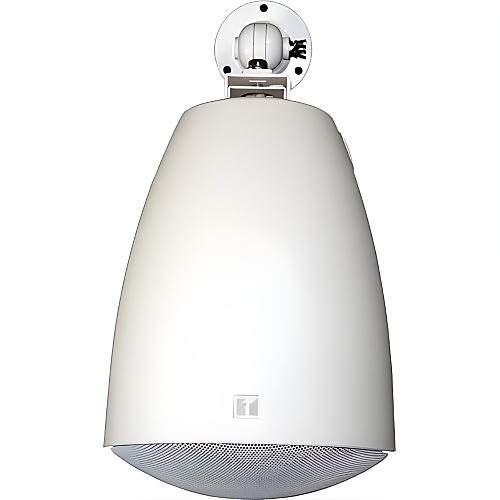

Image of 65-PJ304

Product Overview

The PJ-304 is a projection speaker designed for ceiling and wall installations. Considered in architectural design, it can blend in with lighting equipment. The supplied swivel bracket allows for flexible speaker angle adjustment. The PJ-304 is driven on both high-impedance (100 V and 70 V) and low-impedance (8 ?) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.

General Information

Name : TOA PJ-304 Ceiling Mountable, Wall Mountable Speaker 30 RMS , TOA
Category : Pro Speakers
UPC Code :

Specifications

General Information

ADI Part Number : 65-PJ304
Manufacturer Part Number : PJ-304
Product Model : PJ-304
Product Type : Speaker

Technical Information

Impedance : 8 ohms
Sensitivity : 91dB

Audio

Maximum Frequency Response : 20 kHz
Minimum Frequency Response : 70Hz
RMS Output Power : 30W

Certifications

TAA Compliant : No

Physical Characteristics

Application/Usage : Airport, Art Museums, Factory, Shopping Mall, Subway Stations
Enclosure Type : Bass Reflex

Product Information

Diameter : 7.32"
Length : 14.33"
