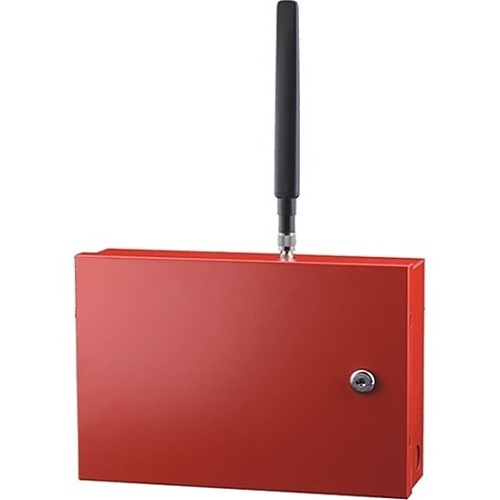

Telguard TG-7FS Universal 5G LTE-M Primary/Backup Commercial Fire Cellular Alarm Communicator, AT&T

Brand: Telguard
ADI #:AD-TG7FSA Model #: TG-7FS-A  Name: Telguard TG-7FS Universal 5G LTE-M Primary/Backup Commercial Fire Cellular Alarm Communicator, AT&T
  • Certified for use on the AT&T 5G LTE-M network for nationwide coverage in the US. In Canada, coverage is provided by Rogers, Telus, and Bell Mobility.
  • Serves as either primary or backup alarm communicator (can monitor existing phone line)
  • Powers directly from the fire panel's 12V/24V auxiliary power supply or via plug-in transformer (included)
Telguard TG-7FS-A 5G LTE-M Universal Commercial Fire Alarm Communicator, AT&T

Product Overview

The Telguard TG-7FS Universal 5G LTE-M Commercial Fire Cellular Alarm Communicator can work as a primary or backup solution in commercial fire applications.The TG-7FS(designed for AT&T) meets all UL Standards for Commercial Fire systems as either a backup pathway to a phone connection, or Sole Path, replacing all other connections. The TG-7FS transmits full data from intrusion and fire systems to central stations using the nationwide AT&T cellular network in the US. In Canada, it uses Rogers, Telus, and Bell Mobility for coverage. Pair with the TG-PEM accessory for DACTless connection to any panel.

General Information

Name : Telguard TG-7FS Universal 5G LTE-M Primary/Backup Commercial Fire Cellular Alarm Communicator, AT&T , Telguard
Category : Alarm Communicators
UPC Code : 702054304287
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : AD-TG7FSA
Brand Name : Telguard
Manufacturer : Telular Corporation
Manufacturer Part Number : TG-7FS-A
Product Line : Telguard Commercial Fire
Product Model : TG-7FS-A
Product Series : TG-7 Fire
Product Type : Fire Alarm Control/Communicator

Technical Information

Cellular Generation : 5G LTE-M
Connectivity Technology : Wireless
Power Consumption : 18mA|110mA

Network & Communication

Cellular Frequency (Hz) : 850000000

Others

ADI Part Number Replaces : AD-TG7LAF02
Model Number Replaces : TG7FS-LTE-A - UPGRADE

Physical Characteristics

Color : Red
Depth : 3.5"
Depth (mm) : 88.9
Height : 7.5"
Height (mm) : 190.5
Width : 11.5"
Width (mm) : 292.1

Power Description

Input Voltage : 12V AC, 24V AC
Input Voltage (V AC) : 12, 24

Miscellaneous

Compatibility : AT&T
Features : Battery Backup
