Product Overview
General Information

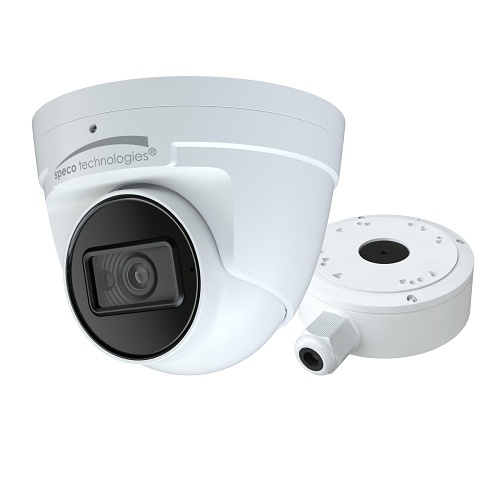

Name : Speco V5T2 5MP Turret Camera with Junction Box, 2.8mm Fixed Lens, IP67, White , Speco Technologies
Category : Turret Cameras
UPC Code : 030519040136
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SO-V5T2
Manufacturer : Speco Technologies
Manufacturer Part Number : V5T2
Packaged Quantity : 12
Product Model : V5T2
Product Type : Turret Camera
Technical Information
Effective Camera Resolution : 4MP
Field of View : Horizontal: 95.3° Vertical: 53.2° Diagonal:115.0°
Lens Mount Type : M12, M12 Mount
Lens Type : Fixed
Maximum Aperture : f/1.6
Maximum Frame Rate : 30 fps, 30fps
Minimum Focal Length : 2.8 mm, 2.8mm
Night Vision : Yes
Night Vision Type : IR
Number of IR LEDs : 1
Video Formats : NTSC, PAL
Camera
Image Sensor Type : CMOS
Night Vision Distance : 1176"
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP67
NDAA Compliant : Yes
Display & Graphics
Maximum Video Resolution : 2560 x 1440
Number of Sensors : 1
Environmental Conditions
Maximum Operating Temperature : 140°F
Minimum Operating Temperature : -22°F
Operating Humidity : >95 % (non-condensing), 95% (Non-condensing)
Exposure
Longest Shutter Speed : 1/3 s
Minimum Illumination : 0.005 lux
Shortest Shutter Speed : 1/100000 s
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 2.8 mm
Lens Included : Yes
Maximum Focal Length : 2.8 mm
Network & Communication
Remote Management : Yes
Physical Characteristics
Durability : Dustproof, Waterproof, Weather Resistant
Package Type : Box
Power Description
Input Voltage : 12V DC
Product Information
Diameter : 3.9"
Mount Type : Ceiling Mount, Pole Mount, Wall Mount
Video
Analog Video Signal Format : AHD, CVBS, CVI, TVI
Warranty
Limited Warranty : 5 Year, 5-Year
Miscellaneous
Country of Origin : China, CN
Environmental Certification : Ec, EU RoHS, REACH, WEEE
Environmentally Friendly : Yes
Indoor/Outdoor : Indoor, Outdoor
Package Contents : Camera, Screws, QSG, CD, Drill Template, Junction Box
