Speco O8VB3 4K Bullet IP Camera with Line Crossing and Intrusion Detection, 2.8mm Fixed Lens, White (Replaces SO-O8VB2)

Brand: Speco Technologies
ADI #:SO-O8VB3 Model #: O8VB3  Name: Speco O8VB3 4K Bullet IP Camera with Line Crossing and Intrusion Detection, 2.8mm Fixed Lens, White (Replaces SO-O8VB2)
  • Captures up to 8MP at 20 fps
  • H.265/H.264/MJPEG compression supported
  • Built-in standard PoE (IEEE 802.3af)

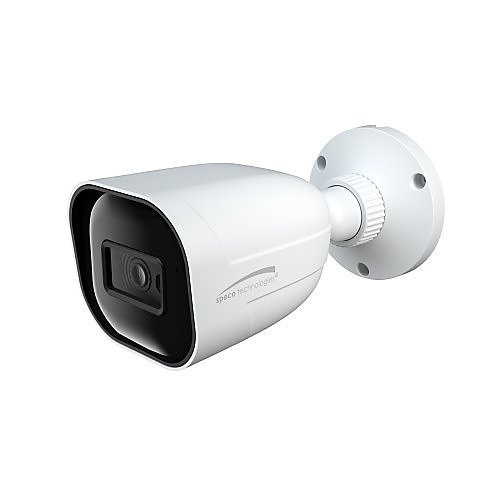

Image of SO-O8VB3

Product Overview

Monitor an indoor or outdoor area with the white O8VB3 Network Bullet Camera from Speco Technologies. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 20 fps. IR LEDs provide up to 100' of night vision. A 2.8mm fixed lens delivers a 108.9° horizontal field of view. The camera features a 3.5mm audio input. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. A memory card slot supports microSD cards up to 256GB (available separately). This NDAA-certified camera complies with ONVIF profile T, making it compatible with a wide range of surveillance devices. A junction box is included for cable management. The camera's enclosure is IP67 rated for safe outdoor use.

General Information

Name : Speco O8VB3 4K Bullet IP Camera with Line Crossing and Intrusion Detection, 2.8mm Fixed Lens, White (Replaces SO-O8VB2) , Speco Technologies
Category : Wireless Cameras
UPC Code : 030519040013
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : SO-O8VB3
Brand Name : Speco Technologies
Manufacturer : Speco Technologies
Manufacturer Part Number : O8VB3
NDAA Compliant : Yes
Packaged Quantity : 20
Product Line : AI line
Product Name : O8VB3
Product Series : AI line
Weight (Approximate) (g) : 423

Technical Information

Effective Camera Resolution : 4MP
Field of View : Horizontal: 95.3° Vertical: 53.2° Diagonal:100.7°
HD Recording : Yes
Lens Mount Type : M12
Lens Type : Fixed
Maximum Aperture : F1.6
Maximum Focal Length (mm) : 2.8
Maximum Frame Rate : 30 fps
Minimum Focal Length : 2.8 mm
Night Vision : Yes
Night Vision Type : IR
Number of IR LEDs : 1
Power Consumption (PoE) (W) : 6
Video Formats : NTSC, PAL

Audio

Master (outer) Case Height (mm) : 255
Master (outer) Case Length (mm) : 580
Master (outer) Case Weight (g) : 20000
Master (outer) Case Width (mm) : 545
Shipping (Inner) Case Gross Weight (g) : 848
Shipping (inner) Case Height (mm) : 118
Shipping (inner) Case Length (mm) : 265
Shipping (inner) Case Net Weight (g) : 848
Shipping (inner) Case Width (mm) : 113
Shipping Weight (Approximate) (g) : 848

Battery Information

Operating Temperature (T-T) (°F) : -22 to 140

Camera

Connectivity Technology : Wired
Image Sensor Type : CMOS
Night Vision Distance : 8.33 ft
Night Vision Distance (mm) : 30000
Wide Dynamic Range : Yes

Display & Graphics

Color Supported : Color, Monochrome
Effective Camera Resolution (Pixel) : 8000000
Maximum Video Resolution : 4MP
Minimum Illumination (lux) : 0
Number of Sensors : 1

Environmental Conditions

Maximum Operating Temperature : 140°F
Maximum Operating Temperature (°F) : 140
Minimum Operating Temperature : -22°F
Minimum Operating Temperature (°F) : -22
Operating Humidity : >95 % (non-condensing)
Storage Temperature (T-T) (°F) : -22 to 149

Exposure

Longest Shutter Speed : 1/3s
Minimum Illumination : 0.005 lux
Shortest Shutter Speed : 1/100000 s

Interfaces/Ports

Network (RJ-45) : Yes

Lens

Focal Length : 2.8 mm
Lens Included : Yes
Maximum Focal Length : 2.80 mm

Network & Communication

Remote Management : Yes

Others

ADI Part Number Replaces : SO-O8VB2
Model Number Replaces : O8VB2

Physical Characteristics

Color : White
Depth : 6.6"
Durability : Dustproof, Waterproof, Weather Resistant
Form Factor : Bullet
Height : 2.9"
Height (mm) : 74.422
Package Type : Box
Weight (Approximate) : 14.88 oz
Width : 2.9"
Width (mm) : 171.3

Power Description

Input Voltage : 12V DC
Input Voltage (V DC) : 12

Product Information

Length (mm) : 82.9
Mount Type : Ceiling Mount, Pole Mount, Wall Mount

Projection Lens

Minimum Focal Length (mm) : 2.8

Video

Horizontal Resolution : 2592
Maximum Frame Rate (fps) : 30

Miscellaneous

Country of Origin : CN
Environmental Certification : EC, EU RoHS, REACH, WEEE
Environmentally Friendly : Yes
Features : Back Light Compensation (BLC), Day/Night, Defog, Digital Watermark, Highlight Compensation (HLC), Human Detection, Multi-view Stream, Noise Reduction, Password Protection, Region of Interest, Smart IR, Wide Dynamic Range
Indoor/Outdoor : Indoor, Outdoor
Ingress Protection Rating : IP67
Package Contents : Camera, Screws, QSG, CD, Drill Template, Junction Box
