Product Overview
This advanced surveillance camera delivers exceptional image quality with up to 8MP resolution at 30fps and features a 4x optical zoom for detailed monitoring. Designed for versatile deployment, it supports True Day/Night operation with an IR cut filter and offers infrared illumination ranging from 98’ to 164’, depending on scene reflectivity. True WDR ensures clear images in challenging lighting conditions, while intelligent analytics -including line crossing, region intrusion, video blurring, and face/people/vehicle/scene change detection- enhance situational awareness.
General Information

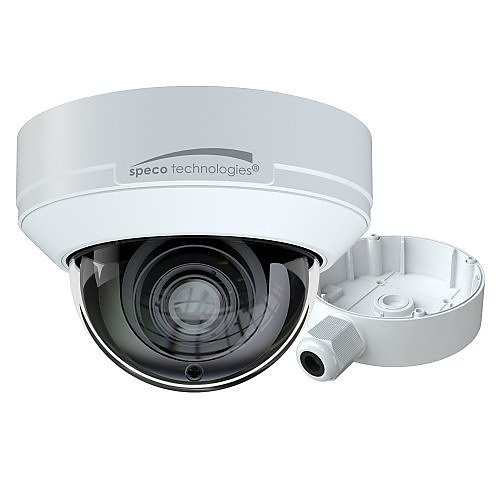

Name : Speco O8D9M 8MP (4K) IP Dome Camera with Advanced Analytics, NDAA Compliant, 2.8-12mm Motorized Lens, White , Speco Technologies
Category : Wireless Cameras
UPC Code : 030519039987
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SO-O8D9M
Manufacturer : Speco Technologies
Manufacturer Part Number : O8D9M
Packaged Quantity : 12
Product Type : Network Camera
Technical Information
Effective Camera Resolution : 8MP
Field of View : Horizontal: 97° to 32° Vertical: 57° to 18° Diagonal: 115° to 36°
Lens Mount Type : 14 mm
Lens Type : Varifocal
Maximum Aperture : F1.2
Maximum Frame Rate : 30fps
Minimum Focal Length : 2.8mm
Night Vision : Yes
Night Vision Type : IR
Number of IR LEDs : 3
Optical Zoom : 4.2x
Video Formats : NTSC, PAL
Camera
Image Sensor Type : CMOS
Night Vision Distance : 164 ft
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP67
NDAA Compliant : Yes
Display & Graphics
Maximum Video Resolution : 8MP
Number of Sensors : 1
Environmental Conditions
Maximum Operating Temperature : 140°F
Minimum Operating Temperature : -22°F
Operating Humidity : 95% (Non-condensing)
Exposure
Longest Shutter Speed : 1s
Minimum Illumination : 0.01 lux
Shortest Shutter Speed : 1/100000 s
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 2.8-12 mm
Lens Included : Yes
Maximum Focal Length : 12 mm
Network & Communication
Remote Management : Yes
Physical Characteristics
Durability : Dustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant
Package Type : Box
Power Description
Input Voltage : 12V DC
Product Information
Diameter : 5.6"
Mount Type : Ceiling Mount, Pole Mount, Wall Mount
Video
Analog Video Signal Format : CVBS
Warranty
Limited Warranty : 5-Year
Miscellaneous
Country of Origin : CN
Environmental Certification : EC, EU RoHS, REACH, WEEE
Environmentally Friendly : Yes
Impact Protection Rating : IK10
Indoor/Outdoor : Indoor, Outdoor
Package Contents : Camera, Screws, QSG, CD, Drill Template, Junction Box
