Product Overview
General Information

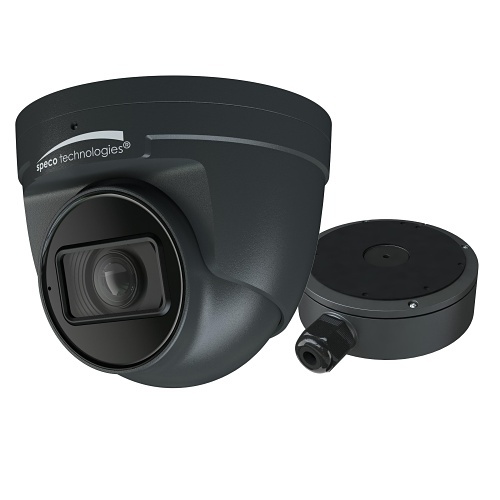

Name : Speco O4IT2M 4MP INTENSIFIER AI IP Turret Camera with Junction , Speco Technologies
Category : Turret Cameras
UPC Code : 030519039833
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SO-O4IT2M
Manufacturer : Speco Technologies
Manufacturer Part Number : O4IT2M
Packaged Quantity : 12
Product Model : O4IT2M
Product Type : Turret Camera
Technical Information
Effective Camera Resolution : 4MP
Field of View : Horizontal: 109° to 46° Vertical: 74.5° to 27.1° Diagonal: 116° to 52.4°
Lens Mount Type : 14 mm
Lens Type : Motorized
Maximum Aperture : f/1.2
Maximum Frame Rate : 30fps
Minimum Focal Length : 2.8mm
Night Vision : Yes
Night Vision Type : BW
Number of IR LEDs : 0
Optical Zoom : 4x
Video Formats : NTSC, PAL
Camera
Image Sensor Type : CMOS
Night Vision Distance : 164'
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP67
NDAA Compliant : Yes
Display & Graphics
Maximum Video Resolution : 4MP
Number of Sensors : 1
Environmental Conditions
Maximum Operating Temperature : 140°F
Minimum Operating Temperature : -22°F
Operating Humidity : 95% (Non-condensing)
Operating Temperature (T-T) : -22-140°F
Storage Temperature (T-T) : -22-149°F
Exposure
Longest Shutter Speed : 1 s
Minimum Illumination : 0.0009 lux
Shortest Shutter Speed : 1/100000 s
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 2.8-12 mm
Lens Included : Yes
Maximum Focal Length : 12 mm
Network & Communication
Remote Management : Yes
Physical Characteristics
Durability : Dustproof, Waterproof, Weather Resistant
Package Type : Box
Power Description
Input Voltage : 12V DC
Product Information
Diameter : 5.12"
Mount Type : Corner Mount, Pole Mount, Wall Mount
Warranty
Limited Warranty : 5-Year
Miscellaneous
Country of Origin : CN
Environmental Certification : EC, EU RoHS, REACH, WEEE
Environmentally Friendly : Yes
Indoor/Outdoor : Indoor, Outdoor
Package Contents : Camera, Screws, QSG, CD, Drill Template, Junction Box
