Product Overview
1200 lbs. holding force Magnalock with automatic dual voltage. Recommended for exterior and perimeter doors through which criminals could gain entrance to cause substantial economic loss
General Information

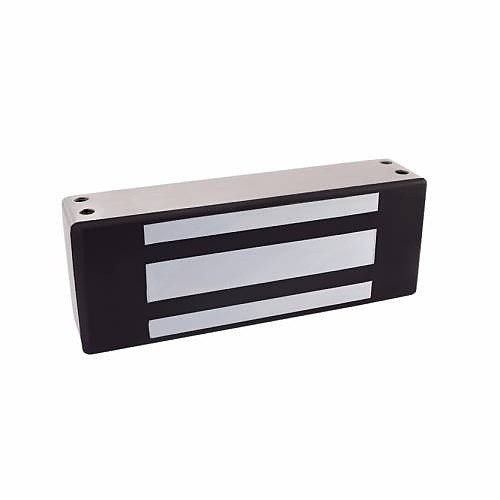

Name : Securitron M62D Magnalock 12/24VDC, DPS (Door Position Switch), 1200lbs. Holding force , Securitron by ASSA ABLOY
Category : Magnetic Locks
UPC Code : 784607036456
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SN-M62D
Brand Name : Securitron
Manufacturer : ASSA ABLOY
Manufacturer Part Number : M62D
Packaged Quantity : 1
Product Line : Magnalock
Product Model : M62D
Product Name : Magnalock M62D Magnetic Lock, DPS
Product Type : Magnetic Lock
Technical Information
Armature Plate Depth : 6" (152.40 mm)
Armature Plate Depth (mm) : 152.4
Armature Plate Height : 2.75" (69.85 mm)
Armature Plate Height (mm) : 69.85
Armature Plate Width : 0.50" (12.70 mm)
Armature Plate Width (mm) : 12.7
Door Supported : Single Door
Holding Force (g) : 544310.844
Magnet Depth : 8" (203.20 mm)
Magnet Depth (mm) : 203.2
Magnet Height : 2.90" (73.66 mm)
Magnet Height (mm) : 73.66
Magnet Width : 1.75" (44.45 mm)
Magnet Width (mm) : 44.45
Physical Characteristics
Application/Usage : Door
Color : Silver
Form Factor : Surface Mount
Lock Depth : 1.75"
Lock Depth (mm) : 44.45
Lock Height : 3"
Lock Height (mm) : 76.2
Lock Width : 8"
Lock Width (mm) : 203.2
Power Description
Input Current : 150 mA, 250 mA
Input Current (A) : 0.15, 0.25
Input Voltage : 12V DC, 24V DC
Input Voltage (V DC) : 12, 24
Product Information
Finishing : Brushed Stainless Steel
Holding Force : 1200 lb
Warranty
Limited Warranty : Lifetime
Miscellaneous
Certifications & Standards : UL Listed
Features : Dual Voltage, Instant Release, No Residual Magnetism, Tamper Proof, Weather Proof
