Product Overview

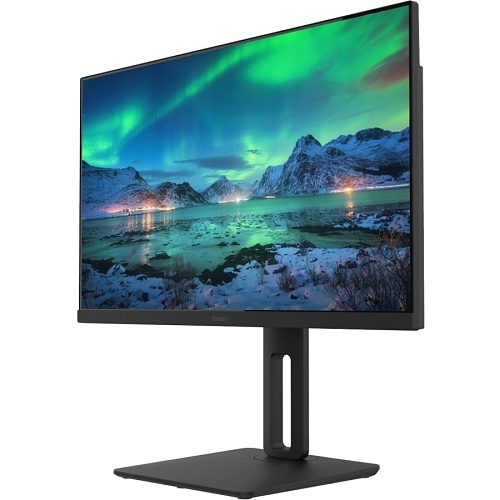

The slim Planar® PZD2410 is a 24" Full HD USB Type-C Docking monitor that provides an easy way to connect and power a PC/laptop. A single USB-C cable can deliver audio, video, data, network connectivity and up to 65 watts of power. The daisychain feature simplifies connecting another monitor. It is flicker free and incorporates blue light reduction presets to help lower eye fatigue. The ergonomic stand lets it fit nicely in education, home, office or healthcare applications.
General Information
Name : Planar 998-2945-00 Video Monitor , Planar
Category : Video Surveillance Monitors
UPC Code : 810689009887
Country of Origin : CN. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : 8Q-998294500
Brand Name : Planar
Manufacturer : Leyard
Manufacturer Part Number : 998-2945-00
Product Type : LCD Monitor
Technical Information
HDCP Supported : Yes
Pixel Pitch (mm) : 0.27
Response Time : 5 ms GTG
Viewable Screen Size : 23.8"
Camera
Horizontal Viewing Angle : 178°
Display & Graphics
Backlight Technology : LED
Pixel Pitch : 10.6 mil
Vertical Viewing Angle : 178°
Energy & Performance
Operating Power Consumption : 20W
Operating Power Consumption (W) : 20
Aspect Ratio : 16:9
Interfaces/Ports
DisplayPort : Yes
HDMI : Yes
Number of DisplayPorts : 2
Physical Characteristics
Color : Black
Depth : 2"
Depth (mm) : 50.8
Height : 12.7"
Height (mm) : 322.58
Width : 21.2"
Width (mm) : 538.48
Video
Brightness : 250 Nit
Brightness (Nit) : 250
Contrast Ratio : 1000:1
Maximum Resolution : 1920 x 1080
Native Contrast Ratio : 1,000:1
Warranty
Limited Warranty : 3 Year
Miscellaneous
Energy Star : No
Environmental Certification : RoHS
Environmentally Friendly : Yes
Features : Anti-glare, Blue Light Reduction, Cable Lock Slot, Digital Daisy Chain, Flicker-free, Multi Language Display, On-screen Display (OSD), Wide Viewing Angle
