Product Overview
CAT5e High Density (HD) modular jacks, RJ-45 keystone jacks, is 8-position 8-conductor (8P8C) and is designed with a smaller rear footprint maximizing space utilization in confined work areas. It is engineered to provide superior performance and reliability, supporting up to Gigabit Ethernet applications. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA Category 5e performance standards.
General Information
Name : OCC KMJA5E5012 CAT5e Keystone Modular Jack , OCC
Category : Keystone Jacks
UPC Code :
Specifications
General Information
ADI Part Number : JQ-KMJ5E5012
Brand Name : OCC
Manufacturer : OCC
Manufacturer Part Number : KMJA5E5012
Interfaces/Ports
Connector Type : Category 5e
Physical Characteristics
Color : White
Miscellaneous
Compatibility : 100 Mbps TP-PMD, 1000BASE-T Gigabit Ethernet, 100BASE-TX Fast Ethernet, 10BASE-T Ethernet, 155/622 Mbps ATM, 270 Mbps digital video, 4/16 Mbps Token Ring, Broadband Video, Voice
Environmental Certification : RoHS

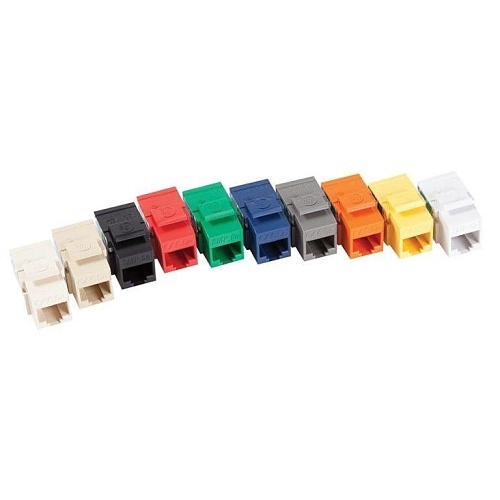

Features : 110-style IDC contacts meet TIA 568-C.2 requirements, Available in 12 color options, Backward compatible, Cat 3, and Cat 5 compliant, Compliant with Power over Ethernet (PoE+) requirements, DC current rating- 1.5 A per conductor at 20°C ambient de-rated to 0.75 A at 60°C, Dielectric withstand- 1000 VAC RMS, AC 60Hz or 1414 VDC P-P, Fits all OCC Keystone faceplates and surface mount boxes, Insulation 500MOhms Minimum, Meets IEC 60603-7 requirements, Universal T568A/B wiring for easy installation
