Product Overview
This Managed PoE++ Switch comes integrated with the Lantronix cloud-based Percepxion Software End-to-End Solutions platform, providing comprehensive device life cycle management, enterprise application integration, and data analytics, all through a single pane of glass. with advanced Layer 2 features and a simple to navigate user interface, this switch offers performance and reliability at a cost-effective, secure, and reliable solution for the network edge. Utilizing PoE enables users to connect, power and manage devices using a single Ethernet cable; simplifying installation and eliminating the need for additional power outlets. This switch provides the benefits of ease of use in Security and Surveillance, Smart Building, and other applications. The switch also includes Device Management System Software (DMS), is accessible by Percepxion, or the local web manager, providing advanced configuration and management of all IP addressable devices in the network. This advanced management provides a graphical network topology, floor map creator, device map view, traffic monitoring, and network diagnostics for troubleshooting.
General Information

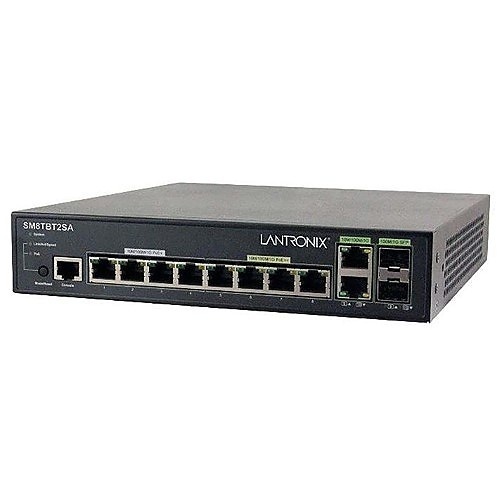

Name : Lantronix SM8TBT2SA-NA Managed Network Switch with 8-Port 10/100/1000BASE-T , Lantronix
Category : Network Switches
UPC Code :
Country of Origin : Taiwan, Province of China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : P6-SM8TBT2SA
Manufacturer : Lantronix, Inc
Manufacturer Part Number : SM8TBT2SA-NA
Product Model : SM8TBT2SA-NA
Product Name : SM8TBT2SA Managed Gigabit Ethernet PoE++ Switch
Product Series : SM8TBT2SA
Product Type : Ethernet Switch
Certifications
TAA Compliant : Yes
I/O Expansions
Expansion Slot Type : SFP
Interfaces/Ports
Total Number of Network Ports : 8
Management & Protocols
Manageable : Yes
Media & Performance
Network Technology : 10/100/1000Base-T
Network & Communication
Ethernet Technology : Gigabit Ethernet
Layer Supported : 2
Networking Standards : IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Physical Characteristics
Depth : 9.5"
Height : 1.7"
Width : 8.7"
Power Description
Frequency : 50-60 Hz
Input Voltage : 100-240V AC
PoE (RJ-45) Port : Yes
PoE Budget : 240W
Power Source : AC, DC, PoE+, Power Supply
Warranty
Limited Warranty : 5-Year
