Product Overview

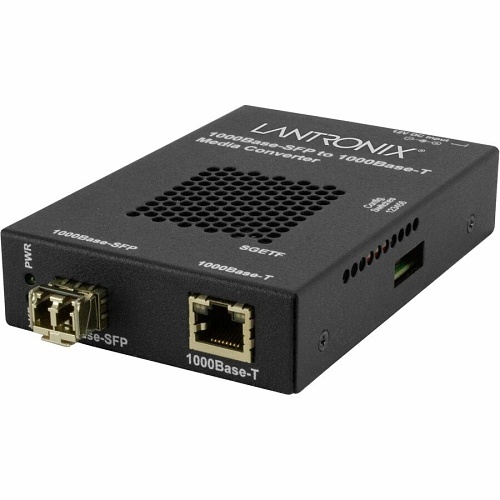

Stand-alone Gigabit Ethernet Media Converter
1000Base-T to 1000Base-SX/LX
The SGETF Series is a stand-alone media converter that provides an interface between 1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 1000Base-T copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
General Information
Name : Lantronix SGETF1039-110-BR 1000BASE-T to 1000BASE-SX/LX, Multi-Mode LC Connector, 220M , Lantronix
Category : Media Converters
UPC Code : 783384248564
Country of Origin : . Country of origin is subject to change.
Specifications
General Information
ADI Part Number : P6-SGETF39BR
Brand Name : Lantronix
Manufacturer : Lantronix, Inc
Manufacturer Part Number : SGETF1039110BR
Maximum Distance : 1804.46'
Product Model : SGETF1039-110
Product Name : SGETF1039-110 Transceiver/Media Converter
Product Series : SGETF
Product Type : Transceiver/Media Converter
Technical Information
Fiber Optic Mode : Multimode
Media Type Supported : Optical Fiber, Twisted Pair
Power Consumption : 5.40W
Certifications
TAA Compliant : Yes
Interfaces/Ports
Number of LC Ports : 1
Number of Network (RJ-45) Ports : 1
Number of Ports : 2
Media & Performance
Fiber Optic Wavelength : 850 nm
Network Technology : 1000Base-SX, 1000Base-T
Network & Communication
Ethernet Technology : 10 Gigabit Ethernet
Physical Characteristics
Depth : 4.8"
Height : 1"
Width : 3.3"
Power Description
Input Voltage : 120V AC, 230V AC
Power Source : AC, DC
Warranty
Limited Warranty : Lifetime
Miscellaneous
Environmental Certification : REACH, RoHS, WEEE
Environmentally Friendly : Yes
Package Contents : SGETF1039-110 Transceiver/Media ConverterPower Supply - Brazil
