Product Overview
Stand-alone DS3-T3/E3 Network Interface Device
DS3 - T3/E3 Coax over Fiber

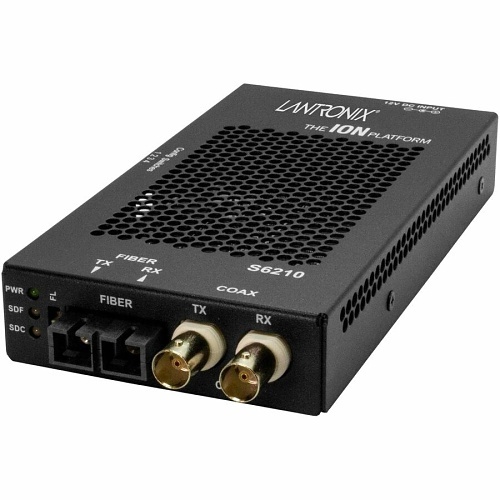

The ION S6210 is a managed stand-alone media converter that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. The S6210 is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The S6210 DS3-T3/E3 converters must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6210 is linked to a C6210 card installed in a managed ION chassis.
General Information
Name : Lantronix S6210-3014-UK DS3-T3/ES Coaxial to Fiber, 20-Pack, 20km, SC Connector , Lantronix
Category : Media Converters
UPC Code : 783384247680
Specifications
General Information
ADI Part Number : P6-S621314UK
Manufacturer : Lantronix, Inc
Manufacturer Part Number : S6210-3014-UK
Maximum Distance : 12.43 Mile
Packaged Quantity : 2
Product Model : S6210-3014
Product Type : Transceiver/Media Converter
Technical Information
Fiber Optic Mode : Single-mode
Media Type Supported : Coaxial, Optical Fiber
Power Consumption : 2.40W
Certifications
TAA Compliant : Yes
Interfaces/Ports
Number of Ports : 3
Number of SC Ports : 1
Media & Performance
Fiber Optic Wavelength : 1310 nm
Power Description
Input Voltage : 120V AC, 230V AC
Power Source : Power Supply
Warranty
Limited Warranty : Lifetime
Miscellaneous
Environmental Certification : REACH, RoHS, WEEE
Environmentally Friendly : Yes
Package Contents : S6210-3014 Transceiver/Media ConverterPower Supply - United Kingdom
