Product Overview

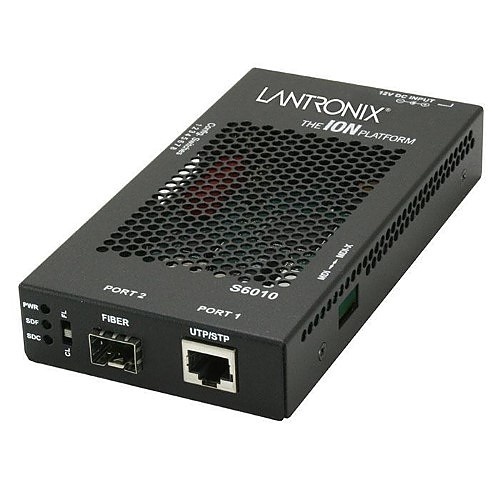

The ION S6010 is a stand-alone managed media converter that offers a solution for extending DS1 - T1/E1 or PRI connections over fiber optic cabling. It provides fiber extension though a twisted pair RJ-48 port and a fiber port. These DS1 - T1/E1 converters must be used in pairs, one on each end of the fiber link. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6010 is linked to a C6010 card installed in a managed ION Chassis. These DS1 - T1/E1 converters are available with fixed fiber connectors or an open SFP slot, with support for various fiber types, distances, and wavelengths to provide maximum flexibility for any network topology. CWDM SFPs can also be used to further increase the bandwidth capacity of the fiber infrastructure.
General Information
Name : Lantronix S6010-1040-EU T1/E1 to Fiber Converter, EU , Lantronix
Category : Media Converters
UPC Code : 648177041558
Specifications
General Information
ADI Part Number : P6-S6114EU
Manufacturer : Lantronix, Inc
Manufacturer Part Number : S6010-1040-EU
Maximum Distance : 4921.26'
Packaged Quantity : 2
Product Model : S6010-1040
Product Type : Transceiver/Media Converter
Technical Information
Media Type Supported : Optical Fiber
Power Consumption : 2.60W
Certifications
TAA Compliant : Yes
Interfaces/Ports
Number of Ports : 2
Media & Performance
Network Technology : T1/E1
Power Description
Power Source : AC Adapter
Warranty
Limited Warranty : Lifetime
Miscellaneous
Environmental Certification : CE Mark, FCC Class A, UL Listed
Environmentally Friendly : Yes
Package Contents : Power Supply - Europe, S6010-1040 Transceiver/Media Converter
