Product Overview

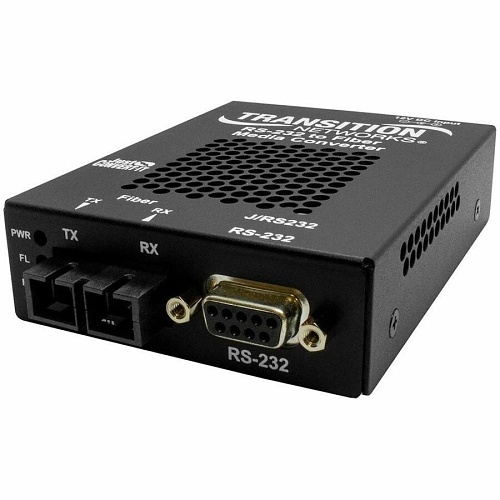

Stand-alone RS232 Media Converter RS232 Copper to Fiber
Link a remote terminal to a host computer: Connect multiple devices, such as security scanners, POS devices, remote terminals and building access/alarming systems to a host computer. Ideal for campus or business environments where remote devices can be networked in a point-to-point configuration where distances are greater than the 15 meter limitation of conventional copper serial cables.
Lantronix's serial RS232 to Fiber Media Converter is an inexpensive way to extend the distance between serial connections with the use of fiber optic cable. This converter supports full or half-duplex data transmission at speeds up to 120 Kbps. Unit and Port LEDs allow for quick status information on the converter.
General Information
Name : Lantronix J/RS232-CF-01(SC)-UK RS232 (DCE) 5V,STANDALONE,SC , Lantronix
Category : Media Converters
UPC Code : 648177043798
Specifications
General Information
ADI Part Number : P6-R232CFCUK
Manufacturer : Lantronix, Inc
Manufacturer Part Number : J/RS232-CF-01(SC)-UK
Product Model : J/RS232-CF-01(SC)
Product Type : Transceiver/Media Converter
Technical Information
Media Type Supported : Optical Fiber
Power Consumption : 3W
Certifications
TAA Compliant : Yes
Interfaces/Ports
Number of Ports : 2
Number of SC Ports : 1
Media & Performance
Fiber Optic Wavelength : 1300 nm
Power Description
Input Voltage : 120V AC, 230V AC
Power Source : AC/DC
Warranty
Limited Warranty : Lifetime
Miscellaneous
Environmental Certification : REACH, RoHS, WEEE
Environmentally Friendly : Yes
Package Contents : J/RS232-CF-01(SC) Transceiver/Media ConverterPower Supply - United Kingdom
