Lantronix N-GXE-ST-02 Network Interface Card - 1000BASE-X Network Interface Card Peripheral Component Interconnect Express Straight Tip

Brand: Lantronix
ADI #:P6-NGXEST02 Model #: N-GXE-ST-02  Name: Lantronix N-GXE-ST-02 Network Interface Card - 1000BASE-X Network Interface Card Peripheral Component Interconnect Express Straight Tip
  • Supports PCIe x1 bus
  • High bandwidth 1000 Mbps network speed (100/1000 Mbps with Auto-Negotiation for SFP version)
  • Supports full-duplex mode

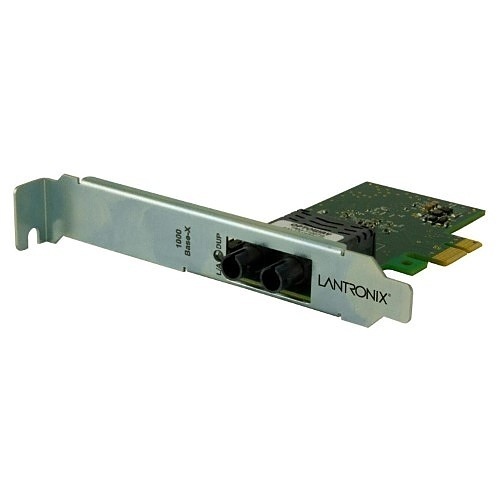

Image of P6-NGXEST02

Product Overview

The N-GXE-xx-02 Series is a Fiber Gigabit Ethernet to PCIe bus adapter that fully complies with all IEEE 802.3z and 1000Base-SX standards. It provides up to 2000 Mbps full-duplex bandwidth capacity to support high-end servers. In addition, with advanced functions like VLan filtering packet processing, link aggregation, smart load balancing, fail-over, and Wake-on-LAN, the adapter provides enhanced performance, flexible configuration and secure networking for users in a standard-based environment. an LED indicator on the bracket displays link status, activity and speed.

General Information

Name : Lantronix N-GXE-ST-02 Network Interface Card - 1000BASE-X Network Interface Card Peripheral Component Interconnect Express Straight Tip , Lantronix
Category : Ethernet Adapters
UPC Code : 648177049493

Specifications

General Information

ADI Part Number : P6-NGXEST02
Brand Name : Lantronix
Manufacturer : Lantronix, Inc
Manufacturer Part Number : N-GXE-ST-02
Product Model : N-GXE-ST-02
Product Name : 1000Base-SX 850nm multimode (ST)
Product Series : N-GXE-ST
Product Type : Gigabit Ethernet Card

Technical Information

Device Supported : Server
Host Interface : PCI Express 2.1 x1
Media Type Supported : Optical Fiber

Media & Performance

Network Technology : 1000Base-SX

Physical Characteristics

Depth : 4.09"
Height : 2.17"

Warranty

Limited Warranty : Lifetime

Miscellaneous

Environmental Certification : RoHS
