Product Overview
Mini Fast Ethernet Media Converter
10/100Base-TX to 100Base-FX

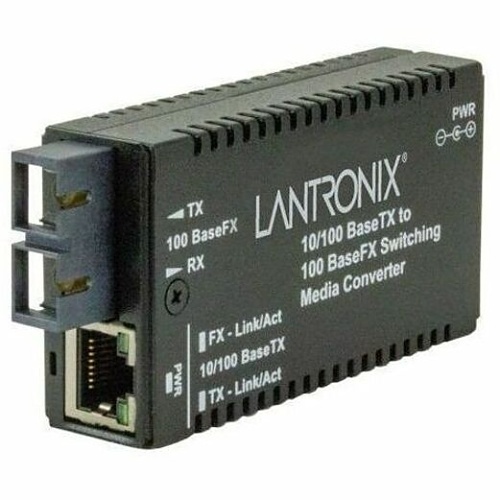

The M/E-PSW Series is a Fast Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
General Information
Name : Lantronix M/E-PSW-FX-02(SC)-SA Mini 10/100BASETX to 100BASEFX Switch, SC Multimode, 2km , Lantronix
Category : Media Converters
UPC Code : 648177047949
Specifications
General Information
ADI Part Number : P6-MEPWFX2CA
Brand Name : Lantronix
Manufacturer : Lantronix, Inc
Manufacturer Part Number : MEPSWFX02SCSA
Maximum Distance : 1.24 Mile
Packaged Quantity : 3
Product Model : M/E-PSW-FX-02(SC)
Product Name : M/E-PSW-FX-02(SC) Transceiver/Media Converter
Product Series : M/E-PSW
Product Type : Transceiver/Media Converter
Technical Information
Fiber Optic Mode : Multimode
Media Type Supported : Optical Fiber, Twisted Pair
Power Consumption : 2.60W
Certifications
TAA Compliant : Yes
Interfaces/Ports
Number of Network (RJ-45) Ports : 1
Number of Ports : 2
Number of SC Ports : 1
Media & Performance
Fiber Optic Wavelength : 1300 nm
Network Technology : 10/100Base-TX, 100Base-FX
Network & Communication
Ethernet Technology : 10 Gigabit Ethernet
Physical Characteristics
Depth : 3.3"
Height : 0.9"
Width : 1.8"
Power Description
Input Voltage : 13.9V DC, 7.5V DC
Power Source : AC, DC
Warranty
Limited Warranty : Lifetime
Miscellaneous
Environmental Certification : REACH, RoHS, WEEE
Environmentally Friendly : Yes
Package Contents : M/E-PSW-FX-02(SC) Transceiver/Media ConverterDIN Rail Clip and VelcroPower Supply - South Africa
