Lantronix TN-10GSFP-LR4M-D60 DWDM MSA Compliant Multi-rate SFP+ Module, 1000BASE-LX/10GBASE-ER, 1G/10

Brand: Lantronix
ADI #:P6-GSFPLR839 Model #: TN-10GSFP-LR4M-D60  Name: Lantronix TN-10GSFP-LR4M-D60 DWDM MSA Compliant Multi-rate SFP+ Module, 1000BASE-LX/10GBASE-ER, 1G/10
  • SFP+ Optical Transceiver with duplex LC connector
  • 1G/10G Small Form-Factor Pluggable (SFP+) MSA compliant
  • Compliant with 10GBase-ER/ZR

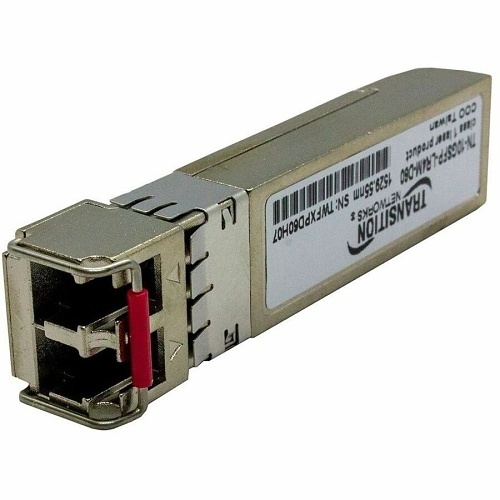

Image of P6-GSFPLR839

Product Overview

10G Base-ER/1000Base-LX, SFP+ with DMI single mode (LC) 1529.55nm 196.00 THz [40km/24.9mi]. Link Budget 15.0 dB.

General Information

Name : Lantronix TN-10GSFP-LR4M-D60 DWDM MSA Compliant Multi-rate SFP+ Module, 1000BASE-LX/10GBASE-ER, 1G/10 , Lantronix
Category : SFP Modules
UPC Code : 648177041800

Specifications

General Information

ADI Part Number : P6-GSFPLR839
Brand Name : Lantronix
Manufacturer : Lantronix, Inc
Manufacturer Part Number : TN10GSFPLR4MD60
Maximum Distance : 131233.60'
Product Model : TN-10GSFP-LR4M-D
Product Name : TN-10GSFP-LRxM-Dxx SFP+ Module
Product Series : TN-10GSFP-LRxM-Dxx
Product Type : SFP+

Technical Information

Fiber Optic Mode : Single-mode
Media Type Supported : Optical Fiber

Certifications

TAA Compliant : Yes

Interfaces/Ports

Number of Ports : 1

Media & Performance

Network Technology : 1000Base-LX, 10GBase-DWDM, 10GBase-ER

Network & Communication

Ethernet Technology : 10 Gigabit Ethernet

Physical Characteristics

Depth : 2.2"
Form Factor : Plug-in Module
Height : 0.3"
Width : 0.5"

Power Description

Input Voltage : 3.3V

Warranty

Limited Warranty : Lifetime

Miscellaneous

Compatibility : MSA Compliant
Country of Origin : TW
Environmental Certification : REACH, RoHS, WEEE
Environmentally Friendly : Yes
