Product Overview

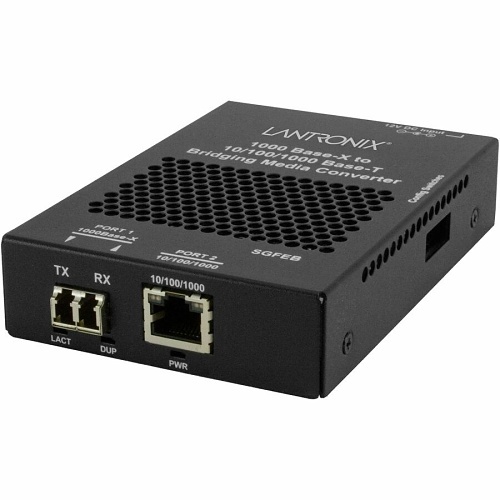

Stand-alone Gigabit Ethernet Media and Rate Converter
10/100/1000Base-T to 1000Base-SX/LX
The SGFEB Series is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
General Information
Name : Lantronix SGFEB1039-130-AR Media Converters 10/100/1000B-T to 1000BASE-SX Multi-Mode LC, AR Power , Lantronix
Category : Media Converters
UPC Code : 783384248977
Specifications
General Information
ADI Part Number : P6-GFEB393AR
Manufacturer : Lantronix, Inc
Manufacturer Part Number : SGFEB1039-130-AR
Maximum Distance : 1804.46'
Product Model : SGFEB1039-130
Product Type : Transceiver/Media Converter
Technical Information
Fiber Optic Mode : Multimode
Media Type Supported : Optical Fiber, Twisted Pair
Power Consumption : 2.20W
Certifications
TAA Compliant : Yes
Interfaces/Ports
Number of LC Ports : 1
Number of Network (RJ-45) Ports : 1
Number of Ports : 2
Media & Performance
Fiber Optic Wavelength : 850 nm
Network Technology : 10/100/1000Base-T, 1000Base-SX
Network & Communication
Ethernet Technology : 10 Gigabit Ethernet
Power Description
Input Voltage : 24V DC, 7.5V DC
Power Source : AC Adapter
Warranty
Limited Warranty : Lifetime
Miscellaneous
Environmental Certification : REACH, RoHS, WEEE
Environmentally Friendly : Yes
Package Contents : SGFEB1039-130 Transceiver/Media ConverterPower Supply - Argentina
