Lantronix E-100BTX-FX-06(SC)-SA Media Converter, 100BASE-TX RJ-45 to 100BASE-FX Multimode SC with Stand-Alone Power

Brand: Lantronix
ADI #:P6-EBTXFX6CA Model #: E-100BTX-FX-06(SC)-SA  Name: Lantronix E-100BTX-FX-06(SC)-SA Media Converter, 100BASE-TX RJ-45 to 100BASE-FX Multimode SC with Stand-Alone Power
  • Used in pairs or as a single unit to integrate fiber into a 100base copper environment
  • Low latency, layer 1 design
  • Auto-negotiation

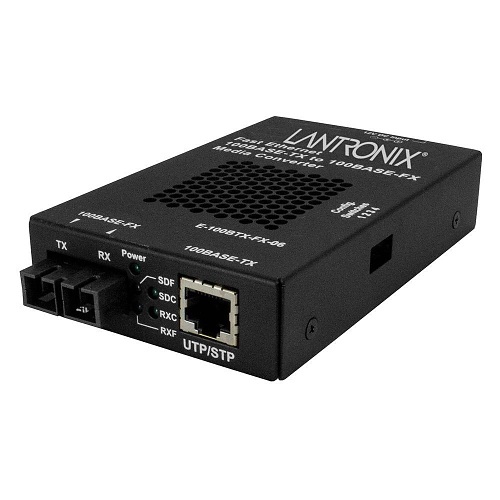

Image of P6-EBTXFX6CA

Product Overview

Stand-alone Fast Ethernet Media Converter

100Base-TX to 100Base-FX

The E-100BTX-FX-06 is a stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 100Base-TX copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.

General Information

Name : Lantronix E-100BTX-FX-06(SC)-SA Media Converter, 100BASE-TX RJ-45 to 100BASE-FX Multimode SC with Stand-Alone Power , Lantronix
Category : Media Converters
UPC Code : 648177045747

Specifications

General Information

ADI Part Number : P6-EBTXFX6CA
Brand Name : Lantronix
Manufacturer : Lantronix, Inc
Manufacturer Part Number : E100BTXFX06SCSA

Technical Information

Media Type Supported : Optical Fiber, Twisted Pair
Power Consumption : 1.75W

Interfaces/Ports

Number of Network (RJ-45) Ports : 1

Media & Performance

Fiber Mode Supported : Multimode
Fiber Optic Wavelength : 1300 nm
Maximum Distance Supported : 1.24 Mile
Network Technology : 100Base-FX, 100Base-TX

Network & Communication

Ethernet Technology : 10 Gigabit Ethernet

Physical Characteristics

Depth : 4.7"
Height : 1"
Height (mm) : 25.4
Weight (Approximate) : 2 lb
Width : 3"
Width (mm) : 76.2

Power Description

Input Voltage : 120V AC, 230V AC

Warranty

Limited Warranty : Lifetime

Miscellaneous

Environmental Certification : REACH, RoHS, WEEE
Environmentally Friendly : Yes
TAA Compliant : Yes
