Lantronix SM8TAT2SA-AR Smart Managed Gigabit Ethernet PoE+ Switch, 8-Port Gigabit PoE+

Brand: Lantronix
ADI #:P6-8TAT2SAAR Model #: SM8TAT2SA-AR  Name: Lantronix SM8TAT2SA-AR Smart Managed Gigabit Ethernet PoE+ Switch, 8-Port Gigabit PoE+
  • IPv6 Access Management
  • Support Jumbo Frame up to 9K bytes
  • Authentication - RADIUS, TACACS+

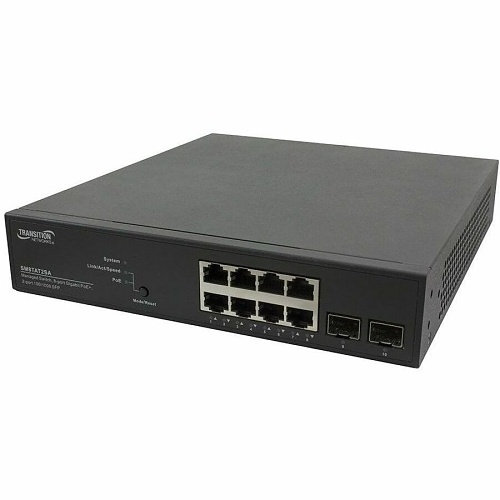

Image of P6-8TAT2SAAR

Product Overview

(8/16/24) 10/100/1000Base-T PoE++ Ports + (2) 100/1000Base-X SFP Slots

These Smart Managed PoE+ Switches with embedded Device Management System (DMS) software provides the benefits of ease of use in IP surveillance, Wireless Access Point and other applications. The DMS capability built into the switch provides time-saving features enabling security integrators or network administrators to establish and document a baseline deployment, automatically discover and remotely configure attached IP-powered devices (PDs).

General Information

Name : Lantronix SM8TAT2SA-AR Smart Managed Gigabit Ethernet PoE+ Switch, 8-Port Gigabit PoE+ , Lantronix
Category : Network Switches
UPC Code : 783384251151
Country of Origin : . Country of origin is subject to change.

Specifications

General Information

ADI Part Number : P6-8TAT2SAAR
Brand Name : Transition Networks
Manufacturer : Lantronix, Inc
Manufacturer Part Number : SM8TAT2SA-AR
Product Model : SM8TAT2SA
Product Name : SMTATSA Ethernet Switch
Product Series : SMTATSA
Product Type : Ethernet Switch

Technical Information

Media Type Supported : Optical Fiber, Twisted Pair
Power Consumption : 147W

Certifications

TAA Compliant : Yes

I/O Expansions

Expansion Slot Type : SFP (mini-GBIC)
Number of SFP+ Slots : 2
Number of Total Expansion Slots : 2
Shared SFP Slot : No

Interfaces/Ports

Modular : Yes
Port/Expansion Slot Details : 2 x Gigabit Ethernet SFP, 8 x Gigabit Ethernet Network PoE+
Total Number of Network Ports : 8

Management & Protocols

Manageable : Yes

Media & Performance

Network Technology : 10/100/1000Base-TX, 100/1000Base-FX

Network & Communication

Ethernet Technology : 10 Gigabit Ethernet
Layer Supported : 4
Networking Standards : IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Physical Characteristics

Depth : 9.5"
Height : 1.7"
Width : 8.7"

Power Description

Frequency : 50-60 Hz
Input Voltage : 120V AC, 230V AC
PoE (RJ-45) Port : Yes
PoE Budget : 130W
Power Source : AC, PoE+

Warranty

Limited Warranty : 5 Year

Miscellaneous

Environmental Certification : REACH, RoHS, WEEE
Environmentally Friendly : Yes
Features : Fanless
Package Contents : SMTATSA Ethernet Switch19" Rack Mount Bracket
