Product Overview

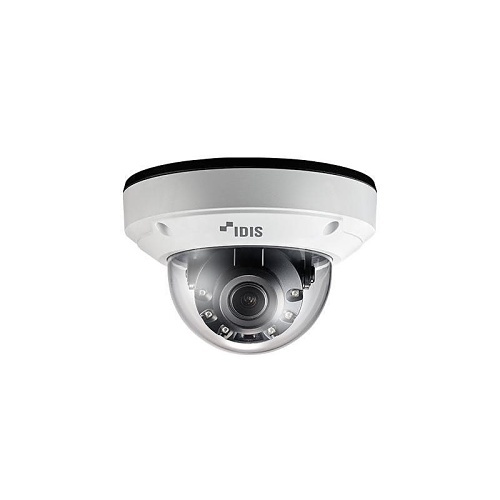

The IDIS DC-D4537HRXA is a high-quality 5MP dome camera featuring a resolution of 2592x1944 for clear and detailed images. Equipped with IDIS Deep-Learning Analytics, it enhances security with intelligent detection capabilities. This camera supports day and night functionality using an infrared cut filter, ensuring reliable performance around the clock. It boasts true wide dynamic range (WDR) for balanced image quality in varied lighting conditions. The H.265 and Intelligent Codec reduces bandwidth and storage needs. Installation is simplified with DirectIP NVR, and remote motorized focus and zoom allow convenient adjustments. Upgrade your surveillance system with this durable, high-performance camera today!
General Information
Name : IDIS DC-D4537HRXA 5MP H.265 AI IR Dome Camera, 2.7-13.5mm Lens, IK10, IP67, WDR , IDIS
Category : Dome Cameras
UPC Code :
Country of Origin : Korea, Republic of. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : A8-DCD4537HR
Brand Name : IDIS Americas
Manufacturer Part Number : DC-D4537HRXA
Product Name : H.265 5MP AI IR Dome Camera/NDAA Compliant
Product Type : Network Camera
Technical Information
Effective Camera Resolution : 5MP
Field of View : 121.6°(W) 34.7°(T) Diagonal, 101.2°(W) 30.4°(T) Horizontal, 53.3°(W) 17°(T) Vertical, 137.4°(W) 38°(T) Diagonal, 101.2°(W) 30.4°(T) Horizontal, 72.5°(W) 22.8°(T) Vertical
Lens Type : Varifocal
Maximum Aperture : f/3.2
Maximum Frame Rate : 30 fps
Minimum Focal Length : 2.7 mm
Night Vision : Yes
Night Vision Type : Infrared (IR)
Video Formats : H.264, H.265, MJPEG
Camera
Night Vision Distance : 131.2'
Wide Dynamic Range : Yes
Display & Graphics
Maximum Video Resolution : 2592 x 1944
Environmental Conditions
Maximum Operating Temperature : 131°F
Minimum Operating Temperature : -40°F
Operating Humidity : 0-90%
Exposure
Longest Shutter Speed : 1/30 Second
Minimum Illumination : 0.15 lux
Shortest Shutter Speed : 1/10000 Second
Lens
Focal Length : 2.7-13.5 mm
Maximum Focal Length : 13.5 mm
Minimum Aperture : f/1.4
Physical Characteristics
Durability : Impact Resistant
Form Factor : Dome
Height : 4.11"
Power Description
Input Voltage : 12V DC
Product Information
Diameter : 6.1"
Miscellaneous
Environmental Certification : CE, FCC
Environmentally Friendly : Yes
Impact Protection Rating : IK10
