Product Overview

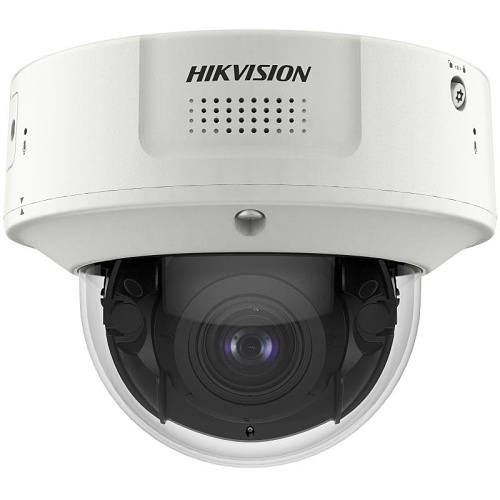

4MP DeepinView Moto varifocal dome camera, maximum resolution 2688x1520 with IR cut filter and 2.8-12mm Lens.
General Information
Name : Hikvision IDS-2CD7146G0-IZHSY (2.8-12MM) DeepinView Series 4MP Moto Varifocal Dome Camera, WDR, IP67, IK10 , Hikvision
Category : Dome Cameras
UPC Code : 842571148022
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : HX-7146IZHSY
Brand Name : Hikvision
Manufacturer Part Number : IDS-2CD7146G0-IZHSY (2.8-12MM)
Product Series : DeepInView
Product Type : Network Camera
Technical Information
Effective Camera Resolution : 4MP
Field of View : horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7°
Lens Type : Varifocal
Maximum Frame Rate : 60 fps
Minimum Focal Length : 2.8mm
Night Vision : Yes
Optical Zoom : 4.3x
Camera
Night Vision Distance : 131.23 ft
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP67
TAA Compliant : No
Display & Graphics
Maximum Video Resolution : 2688 x 1520
Environmental Conditions
Maximum Operating Temperature : 140°F (60°C)
Minimum Operating Temperature : -22°F (-30°C)
Lens
Focal Length : 2.8-12mm
Maximum Focal Length : 12 mm
Physical Characteristics
Color : White
Durability : Dust Resistant, Impact Resistant, Vandalproof, Waterproof
Form Factor : Dome
Power Description
Input Voltage : 12V DC, 24V AC
Product Information
Diameter : 5.7"
Mount Type : Ceiling Mount, Corner Mount, Pole Mount, Wall Mount
Video
Analog Video Signal Format : CVBS
Miscellaneous
Country of Origin : CN
Features : Alarm Triggering, Audio Compression, Built-in Microphone, Day/Night, Human Detection, Motion Detection, Privacy Masking, Region of Interest, Vehicle Detection, Video Management System, Wide Dynamic Range
Impact Protection Rating : IK10
