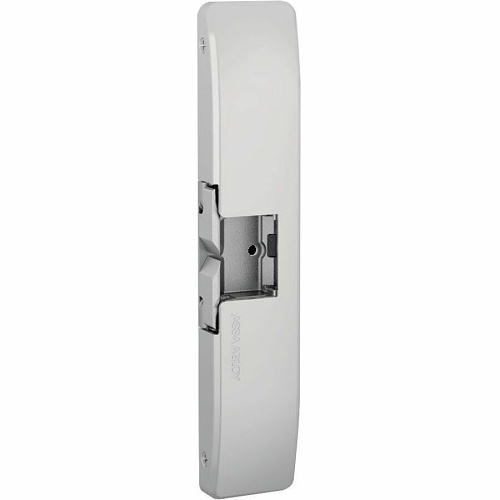

Product Overview
The stylish windstorm resistant, surface mounted solution.
The 9600 Series Electric Strike is a windstorm resistant, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC.
The 9600 is a surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.
General Information
Name : HES 9600-613-LBSM Surface Mounted Electric Strike Windstorm Resistant, Latchbolt Strike Monitor, 12-24VDC, Bronze Toned , HES by ASSA ABLOY
Category : Electric Strikes
UPC Code : 740090010304
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : HE-96613LBSM
Manufacturer Part Number : 9600-613-LBSM
Product Type : Electric Strike
Technical Information
Compatible Door Lock Type : Rim Exit
Door Handling : Non Handed
Holding Strength : 2000 lb
Security Configuration : Fail Safe, Fail Secure
Power Description
Input Current : 250mA, 450mA
Input Voltage : 12V DC, 24V DC
Power Source : DC
Product Information
Finishing : Dark Oxidized Satin Bronze, Oil Rubbed
Warranty
Limited Warranty : 5-Year
Miscellaneous
Certifications & Standards : ANSI/BHMA A156.31, Grade 1 UL 1034 burglary-resistant listed and suitable for outdoor use UL 294 listed UL 305 listed ANSI/SDI A250.13 windstorm resistant Florida Building Code approved TAS 201, 202, 203 ANSI-ASTM E330
Country of Origin : US
Indoor/Outdoor : Outdoor
