Name: GRI 4714A120 Special Purpose Pull-Apart Switch Set, Open Closed Loop, Armored Cable
Brand: George Risk Industries
SKU: GI-4714A120
Price: $0.00

GRI 4714A120 Special Purpose Pull-Apart Switch Set, Open Closed Loop, Armored Cable

Brand: George Risk Industries

ADI #:GI-4714A120 Model #: 4714A120 Name: GRI 4714A120 Special Purpose Pull-Apart Switch Set, Open Closed Loop, Armored Cable

Heavy duty design for outdoor usage
Great for Marinas, Truck Docks, Portable Goods
3' Jacketed, armored or jacketed with chain lead

Product Overview

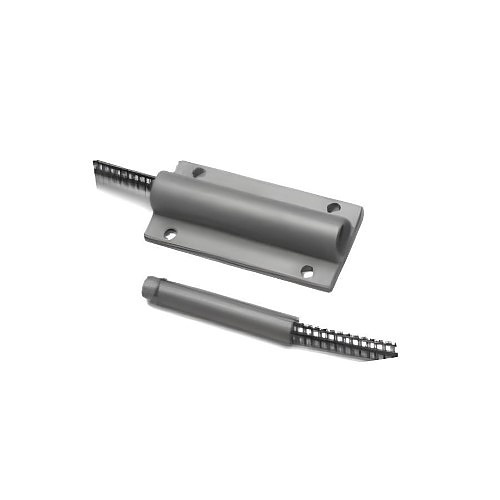

The G.R.I. 4704/4714 series was designed for the problem security application where the free movement of the object to be protected would make it impossible to utilize a standard magnetic proximity device. The 4704 Series consists of three major parts an actuating magnet housing, the switch probe and the probe receptacle.

General Information

Name : GRI 4714A120 Special Purpose Pull-Apart Switch Set, Open Closed Loop, Armored Cable , George Risk Industries
Category : Magnetic Contacts
UPC Code : 697625067633
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : GI-4714A120

Manufacturer : George Risk Industries

Manufacturer Part Number : 4714A120

Product Model : 4714A120

Product Type : Magnetic Contact

Technical Information

Contact Form : Form C

Power Consumption : 5W

Camera

Connectivity Technology : Wired

Physical Characteristics

Application/Usage : Outdoor

Power Description

Input Current : 250mA

Input Voltage : 175V DC

Power Source : DC

Product Information

Contact Type : Closed Loop, Open Loop, SPDT

Length : 120"

Warranty

Limited Warranty : Lifetime

Miscellaneous

Country of Origin : US
