Product Overview

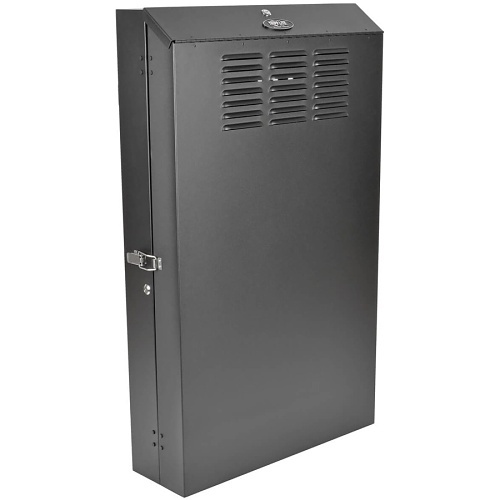

The SRWF4U36 SmartRack 4U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19" rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 lb (68 kg). Because the low-profile cabinet mounts vertically, it extends only 8" from the wall while housing equipment up to 36" deep, including 1U servers, UPS systems, battery packs and switches. In addition to 4U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5" deep. The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keeps equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing. The SRWF4U36 comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
General Information
Name : Eaton Tripp Lite SRWF4U36 SmartRack 4U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet , Eaton Tripp Lite
Category : Rack Cabinets & Frames
UPC Code : 037332190628
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-SRWF4U36
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : SRWF4U36
Product Model : SRWF4U36
Product Type : Rack Cabinet
Physical Characteristics
Application/Usage : Patch Panel, Server
Maximum Weight Capacity : 150 lb
Rack Height : 4U
Rack Width : 19" (482.60 mm)
Product Information
Mount Type : Wall Mount
Warranty
Limited Warranty : 5-Year
Miscellaneous
Assembly Required : No
Country of Origin : CN
Environmental Certification : RoHS
Environmentally Friendly : Yes
Package Contents : <ul><li>SRWF4U36 SmartRack 4U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet</li><li>(12) M6 screws</li><li>(12) M6 cup washers</li><li>(12) 12-24 screws</li><li>(2) Keys</li><li>Owner's manual</li></ul>
