Product Overview

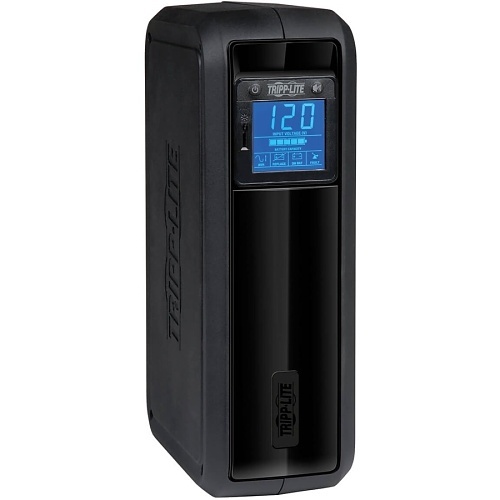

OMNI900LCD Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers, home entertainment systems and media centers. Internal UPS circuits support entry-level PCs for up to 50 minutes or individual VCR/DVR components for as long as 2.5 hours during power failures. Prevents data loss, viewing interruptions, lost recordings and loss of component programming. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. 97% line-mode efficiency saves energy and reduces BTU heat output. Offers complete power protection in an attractive black tower configuration. Includes four battery-supported and surge-protected outlets, plus four additional surge-suppression-only outlets for items not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure. PowerAlert software available via free download. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and macOS. Built-in audible alarm and large LCD front panel voltage display indicates line power status, battery power status, battery low/replace status and voltage boost operation. The LCD display includes a dimmer switch and can be rotated for easy viewing in any application. 900VA/475W power handling ability supports entry-level PCs, home entertainment systems, network workstations, audio/video components. Offers three minutes battery runtime with a full load of 900VA/475W and 10 minutes with a half load of 450VA/237W. Supports battery replacement via built-in access panel.
General Information
Name : Eaton Tripp Lite OMNI900LCD OmniSmart LCD 120V 900VA 475W Line-Interactive UPS, tower, LCD display, USB port , Eaton Tripp Lite
Category : UPS
UPC Code : 037332125156
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-OMNI900LC
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : OMNI900LCD
Packaged Quantity : 1
Product Model : OMNI900LCD
Product Type : Line-interactive UPS
Sector : Data Comm & Networking
Technical Information
Backup/Run Time (Full Load) : 3-Minute
Backup/Run Time (Half Load) : 10-Minute
Hot Swappable : Yes
Output Voltage : 120V AC
Receptacle Detail : 8 x NEMA 5-15R
Receptacle Type : NEMA 5-15R
Transfer Time : 3-Millisecond
Battery Information
Battery Life : 6 Year
Battery Recharge Time : 20-Hour
Controls/Indicators
Status Indicators : Yes
Environmental Conditions
Maximum Operating Temperature : 122°F (50°C)
Management
Alarm : AC Input Failure
Physical Characteristics
Rack Height : 2U
Power Description
Input Voltage : 110V AC
Plug/Connector Type : NEMA 5-15P
Surge Energy Rating : 870 J
Waveform Type : Pulse-width Modulated Sine Wave
Software
Software Included : Yes
Warranty
Limited Warranty : 2-Year
Miscellaneous
Country of Origin : CN
Environmental Certification : RoHS
Environmentally Friendly : Yes
Package Contents : <ul><li>OMNI900LCD UPS System</li><li>Instruction manual</li></ul>
