Product Overview

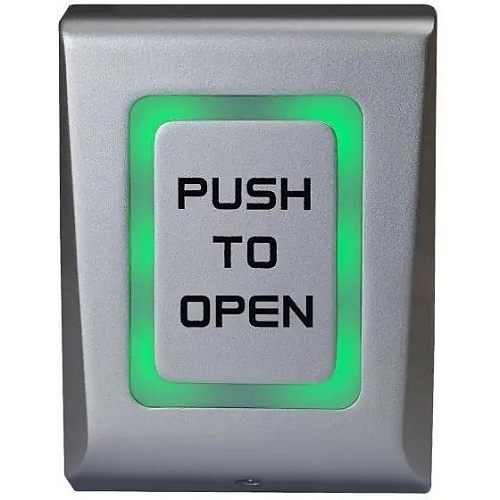

The CM-9800-3 from Camden Door Controls is a Surface Mount LED Illuminated Push/Open Switch. CM-9800 Series surface mount capacitive touch switches, with LED illumination, are vandal and weather resistant with IP 66 rating. The units feature a cast metal design and an adjustable 0 to 60 second relay timer. The CM-9800 has an external input, so that the switch illumination may be activated by either the switch status or the door (locked) status. The large surface area of the capacitive switch is easy to activate, with only a light touch, and the large LED light illumination enables the switch to be highly visible in low light conditions.
General Information
Name : Camden CM-9800/3 Surface Mount LED Illuminated Push / Open Switch , Camden Door Controls
Category : Door Release Buttons
UPC Code : 670454203021
Country of Origin : Canada. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : CM-98003
Brand Name : Camden Door Controls
Manufacturer Part Number : CM-9800/3
Product Name : Camden Door Controls CM-9800-3 Surface Mount LED Illuminated Push/Open Swit Channelannel
Product Type : Push Button
Environmental Conditions
Maximum Operating Temperature : 122°F
Minimum Operating Temperature : -4°F
Physical Characteristics
Application/Usage : CM-9800 series illuminated capacitive touch switches are designed for use where high visibility and vandal resistance is required.
Color : Green, Orange, Red
Depth : 0.81"
Durability : Vandal Resistant, Weather Resistant
Height : 4.5"
Width : 3.37"
Power Description
Input Voltage : 12-24V DC
Miscellaneous
Environmental Certification : RoHS
Environmentally Friendly : Yes
