Product Overview

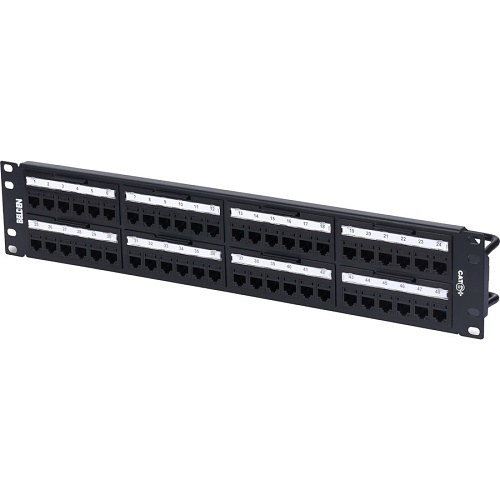

CAT6+ REVConnect Patch Panel, Flat, 48-Port, 2U (Preloaded)
General Information
Name : Belden RV6PPF2U48BK CAT6 Plus REVConnect 48-Port Loaded Patch Panel, 2U RMS, Black , Belden
Category : Network Patch Panels
UPC Code : 611589224994
Country of Origin : Mexico. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : 7B-RV6PPF2U4
Brand Name : Belden
Manufacturer : Belden CDT, Inc
Manufacturer Part Number : RV6PPF2U48BK
Product Name : CAT6+ REVConnect Patch Panel, Flat, 48-Port, 2U (Preloaded)
Product Type : Network Patch Panel
Weight (Approximate) (g) : 1398.425
Technical Information
Material : ABS, PC, Steel
Interfaces/Ports
Number of Network (RJ-45) Ports : 48
Total Number of Ports : 48
Physical Characteristics
Color : Black
Compatible Rack Unit : 2U
Depth : 2"
Depth (mm) : 50.8
Form Factor : Rack Mount
Height : 3.47" (88.14 mm), 3.5"
Height (mm) : 88.138
Weight (Approximate) : 1.40 kg, 3.08 lb
Width : 19"
Width (mm) : 482.6
Warranty
Limited Warranty : 25 Year
Miscellaneous
Certifications & Standards : <ul> <li>UL Rating: UL94V-0</li> <li>ISO/IEC Compliance: IEC 60603-7</li> <li>TIA/EIA Compliance: Category 6 - TIA 568.2-D, ISO/IEC 11801-1, TIA TSB-5021</li> <li>Other Standards: UL 1863, ANSI/TIA 1096-A (formerly FCC Part 68-F)</li> </ul>
Country of Origin : MX
Environmental Certification : China RoHS, EU RoHS, RoHS
Environmentally Friendly : Yes
Package Contents : <ul><li>CAT6+ REVConnect Patch Panel, Flat, 48-Port, 2U (Preloaded)</li><li>50 x REVConnect Cores</li><li>4 x Screws (10x32)</li><li>4 x Screws (12x24)</li><li>2 x Velcro Straps</li><li>8 x Clear Windows</li><li>and more below</li></ul>, 1 x Installation Guide, 2 x Rear Cable Management Bar
