Product Overview
This Belden Patch Panel allow for maximum efficiency when space is valuable. A patch panel is a block which contains numerous RJ45 ports. Patch panels are used for connecting incoming and outgoing lines of a local area network (LAN) or a telecommunication system. In a LAN the patch panel connects the networks computers to each other and any switches or hubs with patch cables. Patch panels also give the benefit of organization for a clean install.
General Information

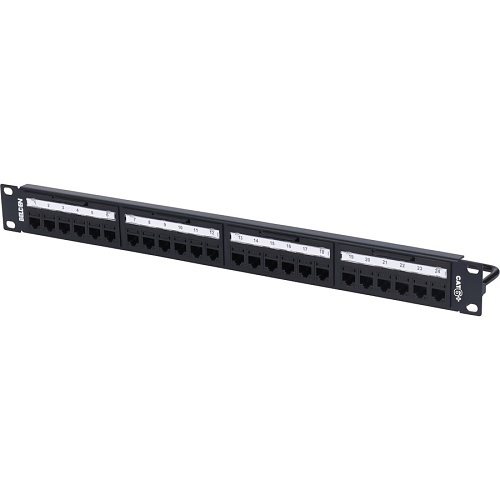

Name : Belden RV6PPF1U24BK CAT6 Plus REVConnect 24-Port Patch Panel, Black , Belden
Category : Network Patch Panels
UPC Code : 611589224970
Country of Origin : Mexico. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : 7B-RV6PPF1U2
Brand Name : Belden
Manufacturer : Belden CDT, Inc
Manufacturer Part Number : RV6PPF1U24BK
Product Name : CAT6+ REVConnect Patch Panel, Flat, 24-Port, 1U (Preloaded)
Product Type : Network Patch Panel
Weight (Approximate) (g) : 837.332
Technical Information
Material : ABS, PC, Steel
Interfaces/Ports
Number of Network (RJ-45) Ports : 24
Total Number of Ports : 24
Physical Characteristics
Color : Black
Compatible Rack Unit : 1U
Depth : 2"
Depth (mm) : 50.8
Form Factor : Rack Mount
Height : 1.7"
Height (mm) : 43.942
Weight (Approximate) : 1.85 lb
Width : 19"
Width (mm) : 482.6
Warranty
Limited Warranty : 25 Year
Miscellaneous
Certifications & Standards : <ul> <li>UL Rating: UL94V-0</li> <li>ISO/IEC Compliance: IEC 60603-7</li> <li>TIA/EIA Compliance: Category 6 - TIA 568.2-D, ISO/IEC 11801-1, TIA TSB-5021</li> <li>Other Standards: UL 1863, ANSI/TIA 1096-A (formerly FCC Part 68-F)</li> </ul>
Country of Origin : MX
Environmental Certification : China RoHS, EU RoHS, RoHS
Environmentally Friendly : Yes
Package Contents : <ul><li>CAT6+ REVConnect Patch Panel, Flat, 24-Port, 1U (Preloaded)</li><li>4 x Screws (10x32)</li><li>4 x Screws (12x24)</li><li>2 x Velcro Straps</li><li>4 x Clear Windows</li><li>1 x Rear Cable Management Bar</li><li>1 x Installation Guide</li></ul>
