Belden 6502UE 8771000 22/4 Stranded Speaker Cable, Plenum-CMP, stranded bare copper conductors with Flamarrest insulation, 1000' (304.8m) Reel, Natural

Brand: Belden
ADI #:7B-6502UE871 Model #: 6502UE 8771000  Name: Belden 6502UE 8771000 22/4 Stranded Speaker Cable, Plenum-CMP, stranded bare copper conductors with Flamarrest insulation, 1000' (304.8m) Reel, Natural
  • Element: Conductor(s)
  • Size: 22 AWG
  • Material: BC - Bare Copper

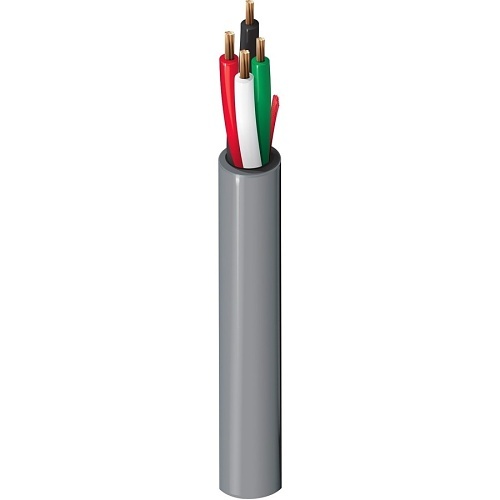

Image of 7B-6502UE871

Product Overview

Security & Sound Cable, Plenum-CMP 4-22 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

General Information

Name : Belden 6502UE 8771000 22/4 Stranded Speaker Cable, Plenum-CMP, stranded bare copper conductors with Flamarrest insulation, 1000' (304.8m) Reel, Natural , Belden
Category : Plenum Audio Cables
UPC Code : 612825177753
Country of Origin : Mexico. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : 7B-6502UE871
Manufacturer : Belden CDT, Inc
Manufacturer Part Number : 6502UE 8771000
Packaged Quantity : 305
Product Type : Audio Cable

Technical Information

American Wire Gauge : 22AWG
Cable Rating : Plenum
Cable Type : Bare Wire
Device Supported : Alarm, Audio System, Intercom, Security System, Sound System
Jacket Type : CMP, FT6, Plenum
Number of Conductors : 4
Number of Pairs : 2
Shielding : No
Solid or Stranded : Stranded

Environmental Conditions

Operating Temperature (T-T) : 167°F

Physical Characteristics

Cable Length : 1000'
Insulation Material : PVC-LS
Jacket Material : PVC-LS
Package Type : Bulk

Product Information

Length : 1000'

Miscellaneous

Country of Origin : MX
Environmental Certification : China RoHS, RoHS, WEEE
Environmentally Friendly : Yes
Indoor/Outdoor : Indoor
