Belden 558GMS 0001000 22/4, 22/4, 22/6 and 18/4 Stranded BC Access Control Cable, Shielded, CMR, Banana Peel, 1000' (304.8m) Reel, Multicolor

Brand: Belden
ADI #:7B-558GMS001 Model #: 558GMS 0001000  Name: Belden 558GMS 0001000 22/4, 22/4, 22/6 and 18/4 Stranded BC Access Control Cable, Shielded, CMR, Banana Peel, 1000' (304.8m) Reel, Multicolor
  • Unsurpassed quality and reliability
  • Robust designs that meet or exceed UL standards
  • Proven performance in installations worldwide

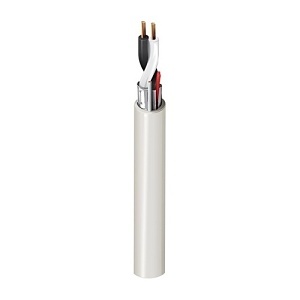

Image of 7B-558GMS001

Product Overview

Riser-CMR, 4-18 AWG conductors, 6-22 AWG conductors with Beldfoil shield, 4-22 AWG conductors, 4-22 AWG conductors, All conductors stranded bare copper with FR-PVC insulation, Each cable has PVC jacket, Banana Peel No overall jacket.

General Information

Name : Belden 558GMS 0001000 22/4, 22/4, 22/6 and 18/4 Stranded BC Access Control Cable, Shielded, CMR, Banana Peel, 1000' (304.8m) Reel, Multicolor , Belden
Category : Multiconductor Cables
UPC Code : 612825164517

Specifications

General Information

ADI Part Number : 7B-558GMS001
Brand Name : Belden
Manufacturer Part Number : 558GMS 0001000
Product Type : Cable

Technical Information

American Wire Gauge : 22AWG
Cable Rating : Plenum
Cable Type : Bare Wire
Jacket Type : CMR, Riser
Shielding : Yes
Solid or Stranded : Stranded

Physical Characteristics

Cable Length : 1000'
Cable Length (mm) : 304800
Jacket Material : PVC
Package Type : Reel
Weight (Approximate) : 94 lb

Miscellaneous

Features : Bendable, Stranded
