AVYCON AVC-NUB81F28 Plug and Play Series 8MP 4K H.265 Bullet Camera, 2.8mm Fixed Lens

Brand: AVYCON
ADI #:BX-NUB81F28 Model #: AVC-NUB81F28  Name: AVYCON AVC-NUB81F28 Plug and Play Series 8MP 4K H.265 Bullet Camera, 2.8mm Fixed Lens
  • 8MP (3840x2160) H.265+, H.265, H.264+, H.264, MJPEG
  • Max. Resolution 3840x2160
  • Full Color and Active Deterrence Camera

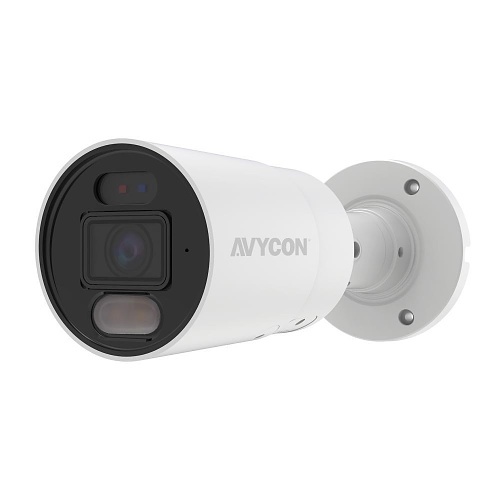

Image of BX-NUB81F28

Product Overview

Discover the AVYCON AVC-NUB81F28 Plug and Play Series, an 8MP 4K bullet camera delivering exceptional 3840x2160 resolution with efficient H.265+ video compression. Featuring a 2.8mm fixed lens with F1.0 aperture, this camera captures vibrant full-color images and offers active deterrence through white light LEDs and blue-red strobe alerts. Enhanced with 3D noise reduction, wide dynamic range, and intelligent analytics, it ensures clear and precise monitoring. The device includes a built-in microphone and speaker, supports micro SD cards up to 256GB, and boasts IP67 waterproof protection, making it perfect for reliable outdoor security. Elevate your surveillance, get this advanced camera today!

General Information

Name : AVYCON AVC-NUB81F28 Plug and Play Series 8MP 4K H.265 Bullet Camera, 2.8mm Fixed Lens , AVYCON
Category : Bullet Cameras
UPC Code : 608011419172
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : BX-NUB81F28
Manufacturer : Avycon
Manufacturer Part Number : AVC-NUB81F28
Product Model : AVC-NUB81F28
Product Type : Network Camera

Technical Information

Effective Camera Resolution : 8MP
Field of View : Diagonal: 132°, Horizontal: 110°, Vertical: 59°
Lens Mount Type : M16 Mount
Lens Type : Fixed
Maximum Aperture : f/1.0
Maximum Frame Rate : 30 fps, 30fps
Minimum Focal Length : 2.8 mm, 2.8mm
Night Vision : Yes

Camera

Image Sensor Type : CMOS

Certifications

Ingress Protection Rating : IP67

Display & Graphics

Maximum Video Resolution : 3840 x 2160

Environmental Conditions

Maximum Operating Temperature : 131°F
Minimum Operating Temperature : -22°F
Operating Humidity : 0.95, 95%

Exposure

Longest Shutter Speed : 1/20000 Second
Minimum Illumination : 0.005 lux
Shortest Shutter Speed : 1/5 Second

Lens

Focal Length : 2.8 mm
Lens Included : Yes
Maximum Focal Length : 2.8 mm

Physical Characteristics

Durability : Dustproof, Waterproof

Power Description

Input Voltage : 12V DC

Product Information

Diameter : 3.73"

Storage

Recording Formats : SD
