Product Overview

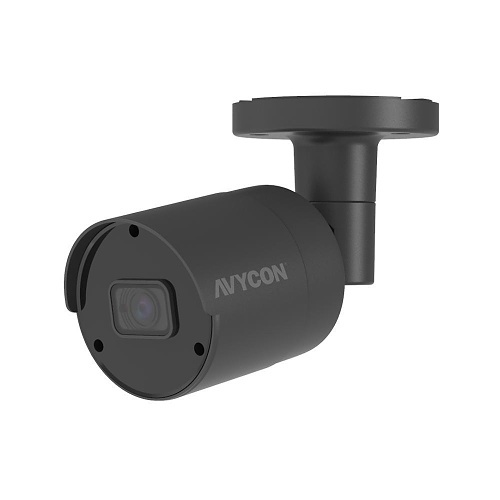

The AVYCON AVC-NPB51F28-G camera is a 5MP H.265 Bullet Network Camera. This 5MP IP camera supports True Day and Night mode, PoE, and up to 98ft. of Smart IR Illumination, and also incorporates an InfiniteStar sensor which allows viewing of video in the lowest of light environments, even in color. This camera includes a Fixed 2.8mm Lens. Also standard with this series is Digital NR, ROI, HLC, True WDR, and BLC capabilities along with IP67 outdoor rating. Optional accessories for this camera include a Junction Box Mount. Includes a MicroSD memory card slot for standalone recording applications.
General Information
Name : AVYCON AVC-NPB51F28-G Bullet IP Camera , AVYCON
Category : Bullet Cameras
UPC Code :
Specifications
General Information
ADI Part Number : BX-NPB51F28G
Brand Name : AVYCON
Manufacturer : Avycon
Manufacturer Part Number : AVC-NPB51F28-G
Product Line : AVC
Product Model : AVC-NPB51F28-G
Product Name : Avycon AVC-NPB51F28-G 5 Megapixel Outdoor IR Bullet Network Camera with 2.8mm Lens, Grey
Product Type : Network Camera
Technical Information
Effective Camera Resolution : 5MP
Field of View : Diagonal: 133°, Horizontal: 110°, Vertical: 58°
Lens Mount Type : M12 Mount
Lens Type : Fixed
Maximum Aperture : f/1.6
Maximum Frame Rate : 30 fps
Minimum Focal Length : 2.8 mm
Camera
Image Sensor Type : CMOS
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP67
Display & Graphics
Maximum Video Resolution : 2880 x 1620
Environmental Conditions
Maximum Operating Temperature : 140°F
Minimum Operating Temperature : -31°F
Operating Humidity : 95%
Exposure
Longest Shutter Speed : 1/200000 Second
Minimum Illumination : 0.004 lux
Shortest Shutter Speed : 1/5 Second
Lens
Focal Length : 2.8 mm
Lens Included : Yes
Maximum Focal Length : 2.8 mm
Physical Characteristics
Color : Gray
Depth : 7.32"
Durability : Dustproof, Waterproof, Weather Resistant
Form Factor : Ceilling Mount, Wall Mount
Height : 3.27"
Weight (Approximate) : 0.88 lb
Power Description
Input Voltage : 12V DC
Product Information
Mount Type : Ceiling Mount, Wall Mount
Storage
Recording Formats : SD
Miscellaneous
Features : 3D DNR, WDR, HLC, BLC and ROI Encoding, 5MP (2880x1620) at 30fps, Built-in MIC, Built-in micro SD card slot, up to 256GB, Day ans Night AUTO ICR, Fixed 2.8mm Lens (F1.6), H.265+/H.265, H.264+/H.264, MJPEG Encoding, Intelligent Analytics, Max. Resolution 2880x1620
Indoor/Outdoor : Outdoor
