Product Overview

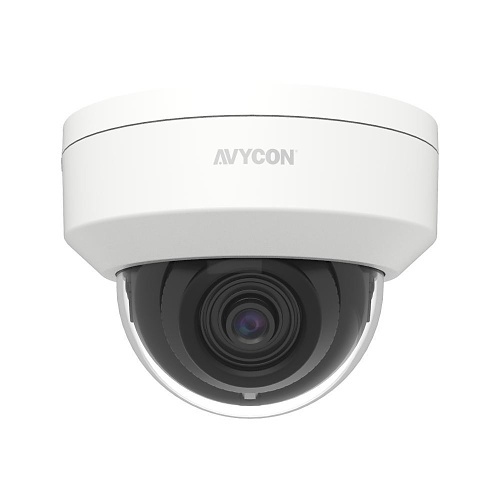

The AVYCON AVC-NPD51F28 camera is a 5MP H.265 Fixed Lens Indoor Dome Network Camera. This 5MP IP camera supports True Day and Night mode, PoE, and up to 98ft. of Smart IR Illumination, and also incorporates an InfiniteStar sensor which allows viewing of video in the lowest of light environments, even in color. This camera includes a Fixed 2.8mm Lens. Also standard with this series is Digital NR, ROI, True WDR, and BLC capabilities. Optional accessories for this camera include a Compact Wall Mount. Includes a MicroSD memory card slot for standalone recording applications.
General Information
Name : AVYCON AVC-NPD51F28 Plug & Play Series 5MP H.265 Fixed Indoor Dome IP Camera, 2.8mm Lens, White , AVYCON
Category : Dome Cameras
UPC Code :
Specifications
General Information
ADI Part Number : BX-CNPD51F28
Manufacturer : Avycon
Manufacturer Part Number : AVC-NPD51F28
Product Model : AVC-NPD51F28
Product Type : Network Camera
Technical Information
Effective Camera Resolution : 5MP
Field of View : Diagonal: 133°, Horizontal: 110°, Vertical: 58°
Lens Mount Type : M12
Lens Type : Fixed
Maximum Aperture : f/1.6
Maximum Frame Rate : 30fps
Minimum Focal Length : 2.8mm
Camera
Image Sensor Type : CMOS
Wide Dynamic Range : Yes
Display & Graphics
Maximum Video Resolution : 2880 x 1620
Environmental Conditions
Maximum Operating Temperature : 131°F
Minimum Operating Temperature : -31°F
Operating Humidity : 0.95
Exposure
Longest Shutter Speed : 1/200000 Second
Minimum Illumination : 0.004 lux
Shortest Shutter Speed : 1/5 Second
Lens
Focal Length : 2.8 mm
Lens Included : Yes
Maximum Focal Length : 2.8 mm
Physical Characteristics
Durability : Indoor
Power Description
Input Voltage : 12V DC
Product Information
Diameter : 4.72"
Mount Type : Ceiling Mount, Wall Mount
Storage
Recording Formats : SD
Miscellaneous
Indoor/Outdoor : Indoor
