Altronix T2RM7CK1Q 8-Door Altronix / Mercury Access and Power Integration Wired Rack Mount Kit

Brand: Altronix
ADI #:AX-T2RM7CK1Q Model #: T2RM7CK1Q  Name: Altronix T2RM7CK1Q 8-Door Altronix / Mercury Access and Power Integration Wired Rack Mount Kit
  • 16 AWG galvanized steel backplane simplifies board layout and wire management
  • Black powder coated steel enclosure
  • Programmable Features: Fail-safe, fail-secure or auxiliary outputs, Any combination of the above, High & low voltage & current monitoring by output, Battery back-up by output, Monitor power supply(ies) input for voltage & current limits, Programmable timer events, user levels, Enable or disable alerts by type, Programmable alert reporting delay

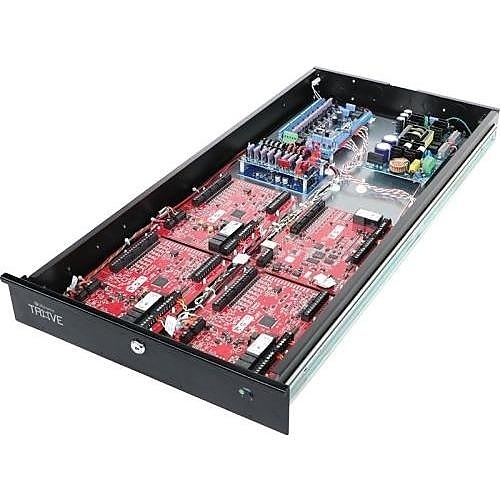

Image of AX-T2RM7CK1Q

Product Overview

Introducing the Altronix T2RM7CK1Q, an advanced 8-door access and power integration kit designed for seamless management of your security needs. This comprehensive solution includes expertly crafted power components and pre-installed wire management, ensuring a hassle-free setup. With dual voltage outputs, it effectively supports Mercury platform controllers and locking devices. The kit accommodates one Intelligent Dual Reader Controller and three Dual Reader Interface Modules, making it ideal for demanding applications. Experience reliable power and control with the T2RM7CK1Q, and elevate your security system today! Don't miss out on this essential addition to your setup.

General Information

Name : Altronix T2RM7CK1Q 8-Door Altronix / Mercury Access and Power Integration Wired Rack Mount Kit , Altronix
Category : Power Supplies
UPC Code :

Specifications

General Information

ADI Part Number : AX-T2RM7CK1Q
Manufacturer : Altronix Corporation
Manufacturer Part Number : T2RM7CK1Q
Product Model : T2RM7CK1Q
Product Type : Access and Power Integration Wired Rack Kit
Sector : Access Control

Technical Information

Number of Doors : 8
Output Voltage : 12V DC, 24V DC

Certifications

NDAA Compliant : Yes

Environmental Conditions

Operating Temperature (T-T) : 32-120°F
Storage Temperature (T-T) : -4-158°F

Power Description

Input Voltage : 120V AC

Warranty

Limited Warranty : Lifetime

Miscellaneous

Package Contents : 1 x eFlow104NB - Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board, 1 x LINQ8ACM - Network Access Power Controller, 8 Fused Outputs, Board, 1 x PDS8 - Dual Input Power Distribution Module, 8 Fused Outputs, 1 x TM2R - Trove2R Backplane for Altronix & Mercury, 1 x Trove2R - Rack Mount Access and Power Integration Enclosure, Requires compatible Trove2R Series Backplane, 1 x VR6 - Voltage Regulator. 24VDC input into 5VDC or 12VDC output
