Altronix ALTV2432300UCB3 Proprietary Power Supply

Brand: Altronix
ADI #:AX-24323UCB3 Model #: ALTV2432300UCB3  Name: Altronix ALTV2432300UCB3 Proprietary Power Supply
  • 32-Class 2 Rated PTC protected power-limited outputs
  • Outputs are rated at 2.5 amp
  • Surge suppression

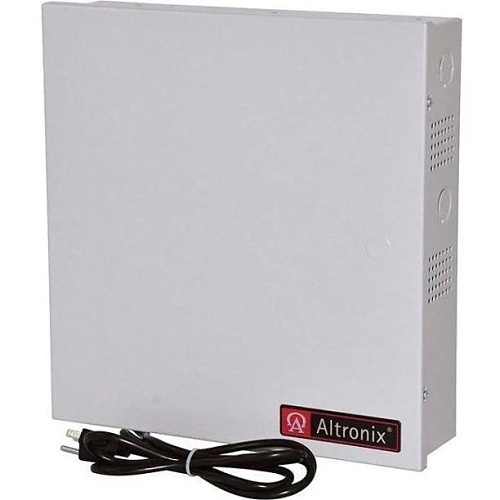

Image of AX-24323UCB3

Product Overview

The Power Supply 32Ptc 24Vac/12.5A Line Cord, Type CCTV AC, Wall Mount, Material Steel, Finish Gray, Enclosure Depth 3.25 In, Enclosure Width 13.00 In, Enclosure Height 13.50 In, Input Voltage 115VAC, Voltage OUTPut 24VAC or 28VAC, OUTPut Current 24VAC at 12.5A or 28VAC at 10A Amps, Input Frequency 60 Hz, Standards UL 2044 Commercial CCTV, CUL, CE, Includes Cam Lock.

General Information

Name : Altronix ALTV2432300UCB3 Proprietary Power Supply , Altronix
Category : Power Supplies
UPC Code :
Country of Origin : US. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : AX-24323UCB3
Manufacturer : Altronix Corporation
Manufacturer Part Number : ALTV2432300UCB3
Product Model : ALTV2432300UCB3
Product Name : ALTV2432300UCB3 Proprietary Power Supply
Product Type : Proprietary Power Supply

Technical Information

Output Voltage : 24V AC, 28V AC

Certifications

NDAA Compliant : Yes

Physical Characteristics

Color : Gray
Depth : 3"
Width : 13"

Power Description

Input Voltage : 115V AC
Output Current : 2.5A

Miscellaneous

Country of Origin : US
