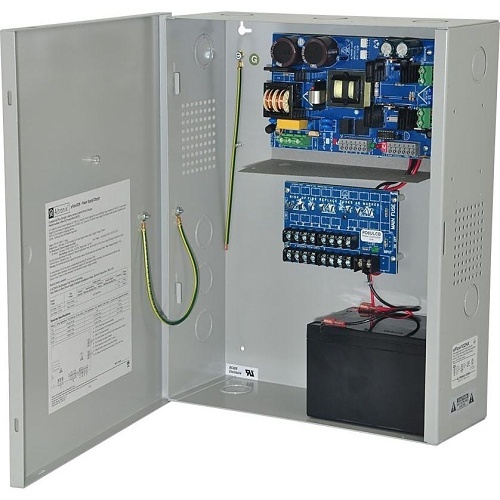

Altronix EFLOW102NX8D Power Supply, 12V DC, 10A with 8 Patch and PTC Fault Alarm Indicators, Extra Large Model

Brand: Altronix
ADI #:AX-102NX8D Model #: EFLOW102NX8D  Name: Altronix EFLOW102NX8D Power Supply, 12V DC, 10A with 8 Patch and PTC Fault Alarm Indicators, Extra Large Model
  • Converts 120VAC to 8 PTC protected 12VDC outputs
  • 10 amps max output with unswitched aux. output
  • Includes fire alarm disconnect feature
Altronix Eight (8) PTC Outputs Power Supply/Charger

Product Overview

Introducing the Altronix EFLOW102NX8D Power Supply, a reliable solution for your power needs. This wall-mounted unit efficiently transforms a 120VAC 60Hz input into eight PTC protected, power-limited 12VDC outputs, delivering a maximum of 10 amps. It features an additional unswitched auxiliary output for added convenience. Safety is paramount with built-in fire alarm disconnect, over voltage protection, and low power disconnect to safeguard your standby batteries from deep discharge. Perfect for various applications, this power supply is designed to meet your demands. Don't miss out on this essential addition to your setup—order yours today!

General Information

Name : Altronix EFLOW102NX8D Power Supply, 12V DC, 10A with 8 Patch and PTC Fault Alarm Indicators, Extra Large Model , Altronix
Category : Power Supplies
UPC Code : 782239952250
Country of Origin : US. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : AX-102NX8D
Manufacturer : Altronix Corporation
Manufacturer Part Number : EFLOW102NX8D
Product Model : eFlow102NX8D
Product Type : Power Supply
Sector : Access Control

Technical Information

Output Voltage : 12V DC

Certifications

NDAA Compliant : Yes

Environmental Conditions

Operating Temperature (T-T) : 32-120°F
Storage Temperature (T-T) : -4-158°F

Power Description

Input Voltage : 120V AC
Output Current : 10A

Warranty

Limited Warranty : Lifetime

Miscellaneous

Country of Origin : US
Environmental Certification : RoHS
Environmentally Friendly : Yes
Indoor/Outdoor : Indoor
