Product Overview
IR, Audio and Alarm I/O, and True WDR. IP67/IK10 rated

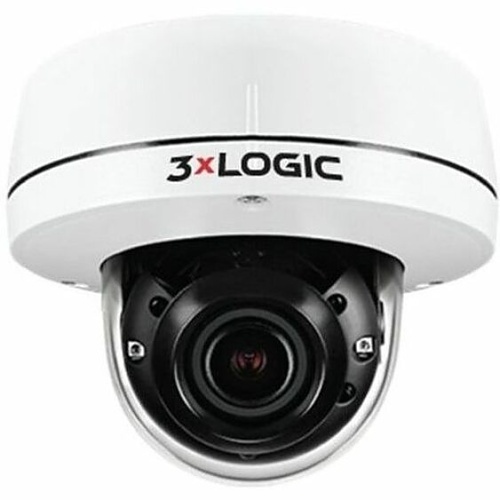

The VX-5M-OD-RIAW is 5 Megapixel, IP67 rated IP camera with a remote focus lens, allowing for flexibility on installation. In addition to being outdoor rated, this camera is also IK10 vandal resistant and has 120dB WDR and built-in 30m IR, making the VX-5M-OD-RIAW a versatile camera fitting most every outdoor installation requirement.
The VX-5M-OD-RIAW is 5 Megapixel, IP67 rated IP camera with a remote focus lens, allowing for flexibility on installation. In addition to being outdoor rated, this camera is also IK10 vandal resistant and has 120dB WDR and built-in 30m IR, making the VX-5M-OD-RIAW a versatile camera fitting most every outdoor installation requirement.
The VX-5M-OD-RIAW is compatible with the entire VIGIL Software Suite, including direct access through VIGIL Client and our mobile app View Lite II, as well as with VIGIL Central Management for remote health monitoring and notification.
The VX-5M-OD-RIAW also supports H.264, H.265 and dual streaming. These technologies, combined with VIGIL Server's Substream Motion Detection and RapidStream technologies allows this camera to be view remotely in both live and playback modes with minimal impact on your network.
As part of the All-in-One Series of cameras, the VX-5M-OD-RIAW has onboard storage and, with purchase of appropriate licensing, has the ability to have VIGIL Server installed on the camera. This can make the camera a standalone recording device, allowing storage on the camera as well as redundant recording to a VIGIL Server. As a standalone camera, the VX-5M-OD-RIAW is compatible with the entire VIGIL Software Suite, including direct access through VIGIL Client and our mobile app View Lite II, as well as with VIGIL Central Management for remote health monitoring and notification.
General Information
Name : 3xLOGIC VX-5M-OD-RIAW-S512 VISIX 5MP Indoor Outdoor Dome Camera with Remote Focus, IR, 2.7-13.5mm Lens, WDR, IP67 IK10, 512GB SD Card , 3xLOGIC
Category : Dome Cameras
UPC Code :
Country of Origin : Vietnam. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : IA-VX5MOS512
Brand Name : 3xLOGIC
Cloud Storage : Yes
Manufacturer Part Number : VX-5M-OD-RIAW-S512
Product Line : VISIX
Technical Information
Effective Camera Resolution : 5MP
Field of View : D:39°~109°, H:31°~90°, V:24°~62°
Lens Type : Varifocal
Maximum Focal Length (mm) : 13.5
Maximum Frame Rate : 30 fps
Minimum Focal Length : 2.70 mm
Night Vision : Yes
Optical Zoom : 5x
Camera
Night Vision Distance : 98.43 ft
Wide Dynamic Range : Yes
Display & Graphics
Effective Camera Resolution (Pixel) : 5000000
Maximum Video Resolution : 2592 x 1944
Environmental Conditions
Maximum Operating Temperature : 122°F (50°C)
Minimum Operating Temperature : -22°F (-30°C)
Lens
Focal Length : 2.7-13.5 mm
Maximum Focal Length : 13.50 mm
Physical Characteristics
Color : White
Depth : 4.9"
Durability : Dustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant
Form Factor : Dome
Height : 4.1"
Height (mm) : 103
Weight (Approximate) : 1.28 lb
Power Description
Input Voltage : 12V DC
Product Information
Mount Type : Ceiling Mount, Corner Mount, Junction Box Mount, Pendant Mount, Pole Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 2.7
Video
Maximum Frame Rate (fps) : 30
Warranty
Limited Warranty (Second) : 4 Year
Miscellaneous
Country of Origin : VN
Features : Day/Night, Motion Detection, Smart Object Detection, Tamper Detection, Video Management System, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : Indoor, Outdoor
Ingress Protection Rating : IP67
Package Contents : <ul><li>VISIX 5MP Indoor/Outdoor Dome with Remote Focus (2.7-13.5mm)</li><li>Template Sheet</li><li>Torx Wrench</li><li>Waterproof Cap</li><li>Gasket Screw</li><li>Anchor Test Video Cable</li><li>Mount Bolt</li><li>and more below</li></ul>, Guide, Nut Moisture Absorber
