Product Overview
The VX-5M4-MD-IAW is compatible with the entire VIGIL Software Suite, including direct access through VIGIL Client and our mobile app View Lite II, as well as with VIGIL Central Management for remote health monitoring and notification.
The VX-5M4-MD-IAW also supports dual streaming. This combined with VIGIL Server's Substream Motion Detection and RapidStream technologies allows the camera to be viewed remotely in both live and playback modes with minimal impact on your network.
As part of the All-in-One Series of cameras, the VX-5M4-MD-IAW has onboard storage and, with purchase of appropriate licensing, has the ability to have VIGIL Server installed on the camera. This can make the camera a standalone recording device, allowing storage on the camera as well as redundant recording to a VIGIL Server. As a standalone camera, the VX-5M4-MD-IAW is compatible with the entire VIGIL Software Suite, including direct access through VIGIL Client and our mobile app View Lite II, as well as with VIGIL Central Management for remote health monitoring and notification.
General Information

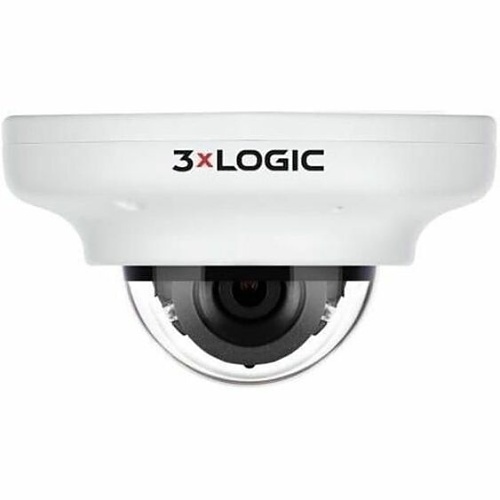

Name : 3xLOGIC VX-5M4-MD-IAW-S1TB 5MP Indoor Outdoor Vandal Proof Mini-dome with True WDR and Microphone, 1TB SD Card, 2.8mm Fixed Lens , 3xLOGIC
Category : Dome Cameras
UPC Code :
Country of Origin : Vietnam. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : IA-VX5M4S1TB
Manufacturer Part Number : VX-5M4-MD-IAW-S1TB
Product Type : Network Camera
Technical Information
Effective Camera Resolution : 5MP
Field of View : D : 106.6°, H : 82.3°, V : 58.8°
Lens Type : Fixed
Maximum Frame Rate : 30fps
Minimum Focal Length : 4mm
Night Vision : Yes
Video Formats : H.264, H.265, MJPEG
Video Resolution : Yes
Camera
Night Vision Distance : 98.43 ft
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP67
Display & Graphics
Maximum Video Resolution : 2592 x 1944
Environmental Conditions
Maximum Operating Temperature : 122°F (50°C)
Minimum Operating Temperature : -22°F (-30°C)
Operating Humidity : 0.9
Exposure
Longest Shutter Speed : 1/15 Second
Minimum Illumination : 0.06 lux
Shortest Shutter Speed : 1/32000 Second
Lens
Focal Length : 4 mm
Maximum Focal Length : 4 mm
Physical Characteristics
Durability : Dustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant
Power Description
Input Voltage : 12V DC
Product Information
Diameter : 4.1"
Mount Type : Ceiling Mount, Junction Box Mount, Pendant Mount, Wall Mount
Warranty
Limited Warranty : 4-Year
Miscellaneous
Country of Origin : VN
Environmental Certification : CE, FCC, UL
Environmentally Friendly : Yes
Impact Protection Rating : IK10
Indoor/Outdoor : Indoor, Outdoor
